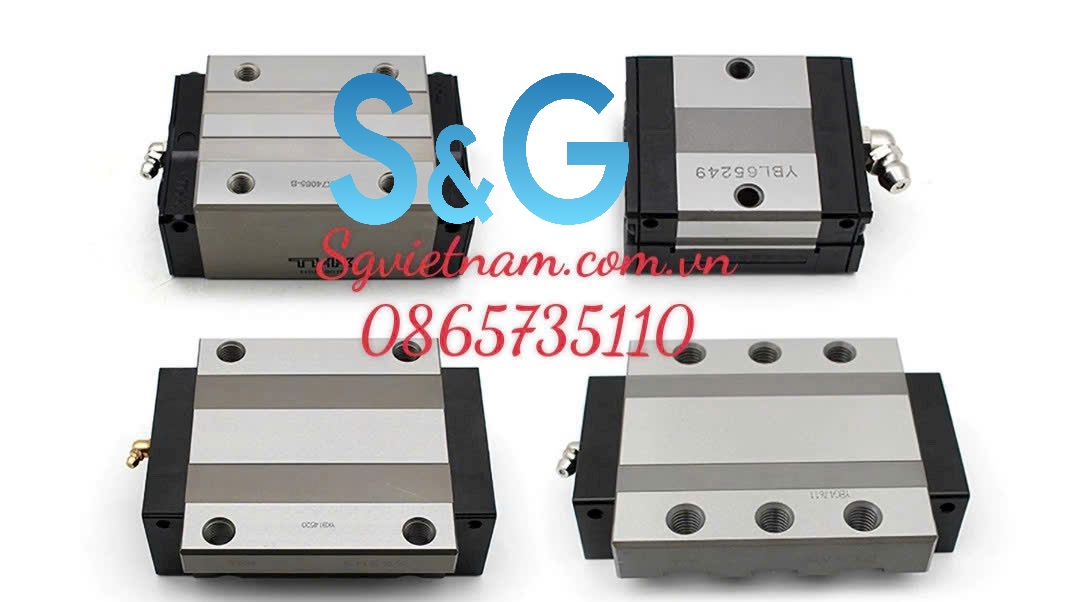

Con trượt|slide block|THK|HSR15R1UUC1

Model No.	Outer dimensions			Block dimensions			Rail dimensions		Basic load rating
									Radial
	Height M	Width W	Length L	B	C	S x l	Pitch F	d1xd2xh	Dynamic C	Static C0
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN
HSR15R	28	34	56.5	26	26	M4 x 5	60	4.5×7.5×5.3	10.9	15.7
HSR20R	30	44	74	32	36	M5 x 6	60	6×9.5×8.5	19.8	27.4
HSR25R	40	48	83.1	35	35	M6 x 8	60	7x11x9	27.6	36.4
HSR30R	45	60	98	40	40	M8 x 10	80	9x14x12	40.5	53.7
HSR35R	55	70	109.4	50	50	M8 x 12	80	9x14x12	53.9	70.2
HSR45R	70	86	139	60	60	M10 x 17	105	14x20x17	82.2	101
HSR55R	80	100	163	75	75	M12 x 18	120	16x23x20	121	146
HSR65R	90	126	186	76	70	M16 x 20	150	18x26x22	195	228

Application of THK THK HSR20R
1. THK HSR20R THK’s linear motion system helps to provide a guide device that enables this precision and speed to be realized.
2. THK HSR20R In order to repeat the production of this advanced product, the LM guide and ball screw in the milling machine guide system which don’t waste of action
3. The LM guide and ball screw are indispensable for the movement of the tool section of the lathe because of its high rigidity and high precision.
4. By combining LM guides and ball screws with lubrication parts, we can reduce system design work and assembly steps, and extend the interval needed for maintenance.
5. Frequent earthquakes have caused great concern among residents in some regions. The vibration control system of THK THK HSR20R can help solve the problem.
The system is based on the application technology of LM guide ball screw. It can provide protection to people’s life and life in earthquake. The system can not only prevent the damage caused by the earthquake, but also reduce people’s panic because of its omnipresent, reliable and durable.
