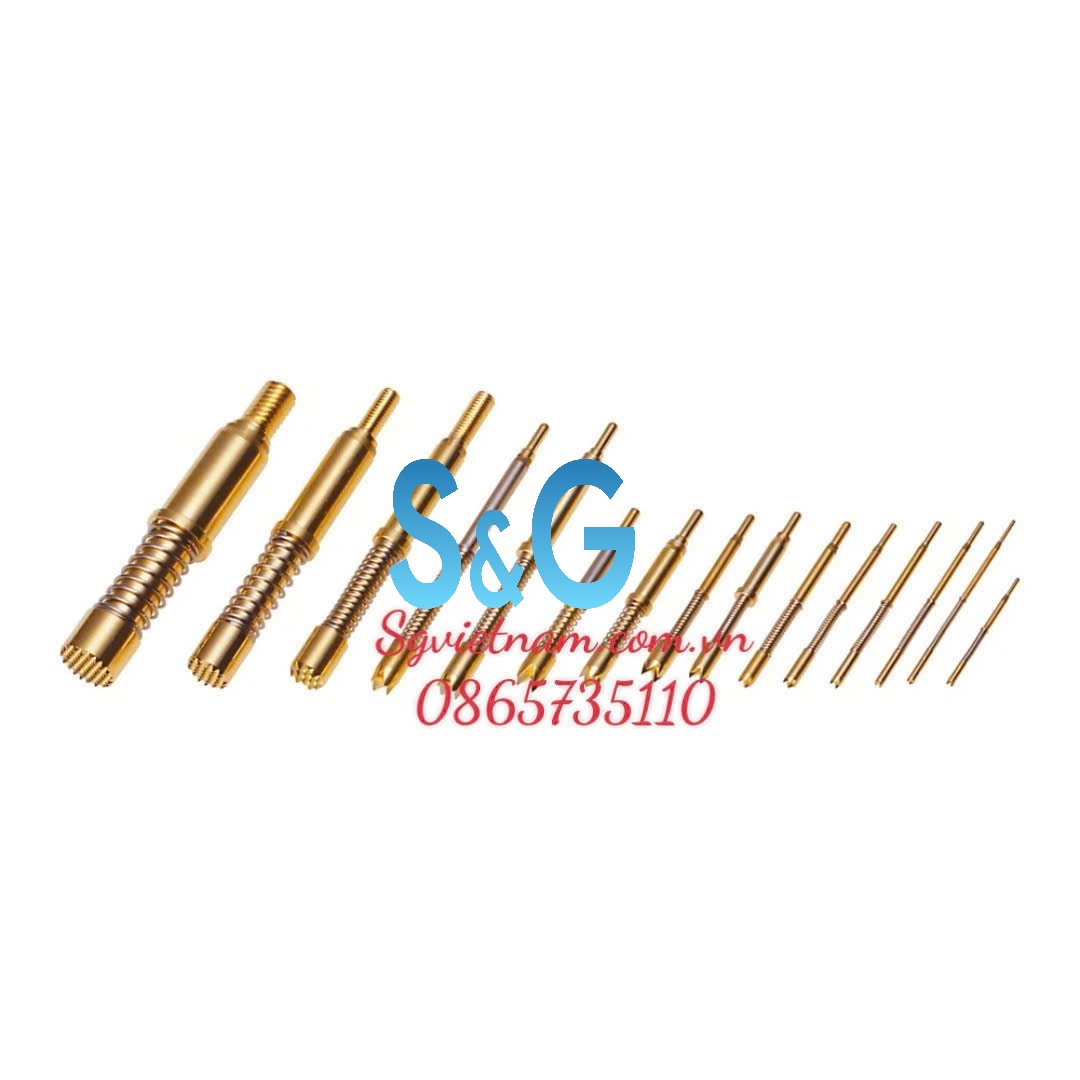

| Fig | Type | Configuration of Tip | a | b | c | d | d’ | e | g | g’ | h | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CP40 | A, B*. B<0.9>, C, CX, R,T | 45.5 | 23.5 | 15 | — | 6 | 15 | 3 | — | 2 (1.3)* | 4 | 3.2 |
| 2 | DL,DFL,E90,E120,F,G30,G60,G90,GX,H,K,KX,U | 7 | — | 3.5 | — | ||||||||
| D, DF | 42.5 | 20.5 | 4 | — | |||||||||
| 3 | J | 45.5 | 23.5 | 13.6 | 5 | 3.4 | 3 | 1.8 | |||||
| J7 | 3.5 | 2.1 | |||||||||||
| J19 | 4.5 | 3.5 | |||||||||||
| J37 | 6 | 4.7 | |||||||||||
| 4 | M3P | 43.5 | 15 | 7 | — | 5.3 | 4.8 | ||||||
| M3B | 7 | 6.1 | |||||||||||
| 2 | CPR40 | VC, QN | 45.5 | 23.5 | 15 | 7 | — | 15 | 3.5 | — | 2 | 4 | 3.2 |
| 1 | CP40A | A, B*, B<0.9>, C, CX, R,T | 45.5 | 23.5 | 15 | — | 6 | 15 | 3 | — | 2 (1.3)* | 3.5 | 2.9 |
| 2 | DL,DFL,E90,E120,F,G30,G60,G90,GX,H,K,KX,U | 7 | — | 3.5 | — | ||||||||
| D, DF | 42.5 | 20.5 | 4 | — | |||||||||
| 3 | J | 45.5 | 23.5 | 13.6 | 5 | 3.4 | 3 | 1.8 | |||||
| J7 | 3.5 | 2.1 | |||||||||||
| J19 | 4.5 | 3.5 | |||||||||||
| J37 | 6 | 4.7 | |||||||||||
| 2 | CP40SB | DL, DFL, E90, E120, F, G120, GX, H | 45.5 | 23.5 | 15 | 7 | — | 15 | 4.5 | — | 2 | 4 | 3.2 |
| 2 | CPR40S | VC, QN | 45.5 | 23.5 | 15 | 7 | — | 15 | 4.5 | — | 2 | 4 | 3.2 |
| 2 | CP40P | DL,DFL,E90,E120,F,G30,G60,G90,GX,H,K,KX,U | 45.5 | 23.5 | 16.3 | 7 | — | 15 | 3.5 | — | 2 | 3 | 2.4 |
| D, DF | 42.5 | 20.5 | 4 | — | |||||||||
| 1 | CP40S | A, B*, B<0.9>, C, CX, R,T | 45.5 | 23.5 | 16.3 | — | 6 | 15 | 3 | — | 2 (1.3)* | 3 | 2.4 |
| 2 | DL, DFL, E90, E120, F, G120, GX, H | 7 | — | 4.5 | — | ||||||||
| 3 | J | 14.9 | 5 | 3.4 | 3 | 1.8 | |||||||
| J7 | 3.5 | 2.1 | |||||||||||
| J19 | 4.5 | 3.5 | |||||||||||
| J37 | 6 | 4.7 |
