ype

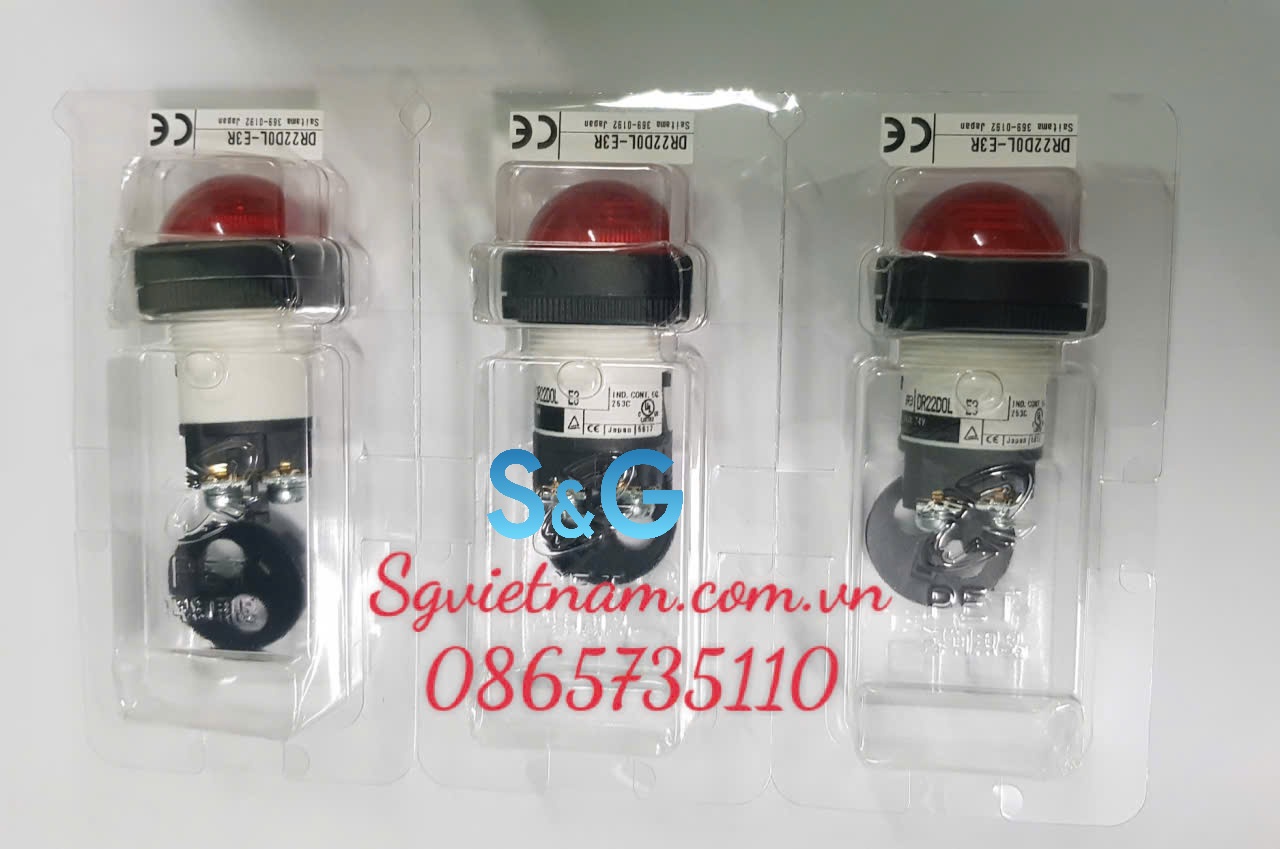

Pilot lights
Head type
Dome
Power supply voltage
24VAC, 24VDC
Mounting hole size
D22.3mm, D25.5mm
Size
D22, D25
Dimension of lens
D30mm
Lens color
Red
Light type (Illumination type)
Continuous
Lamp type
Led
Housing material
Plastic
Bezel material
Plastic
Bezel color
Black
Unique feature
Without transformer
Connection type
Screw terminals
Mounting type
Panel mounting (flush mounting)
Operating ambient
Standard
Ambient temperature
-40…80°C
Ambient humidity
45…85%
Overall diameter
30mm
Overall length
54.2mm
Depth behind panel
37mm
Degree of protection
IP65
Representative standard
UL, CSA, TÜV
