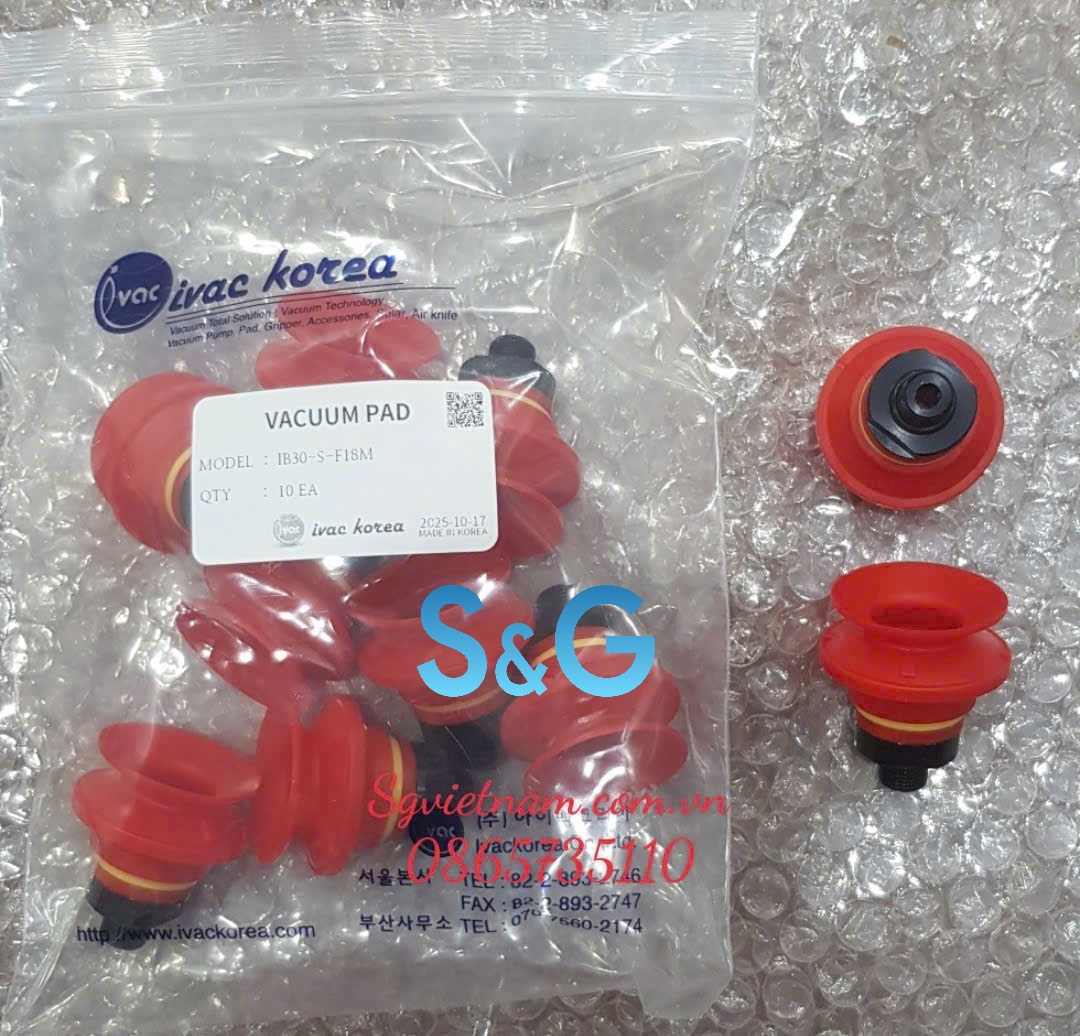

Giác hút chân không|Vacuum pad|Ivac|IB30-S-F18M

IBL15 – S – 18M
IBL Series
SUCTION CUP WITH LONG BELLOWS
Vacuum Technology
Vacuum Pad IBL Series진공패드
적용 / Suitable for Handling
비닐팩 제품 [General Food Products] 계란 [Eggs] 빵 [Bread] 플라스틱 [Plastic] ② 재질 [MATERIAL] N : NBR
S : SILICON
WS : WHITE SILICON
CS : C.SILICON
U : URETHANE
B,V : Fluorine
HS : HIGH TEMP SILICON
MF : Mark Free
Lifting movement to separate small and thin objects.
Only lightweight objects should be handled
when the lifting force is parallel to the surface.
① ② ③
③ 연결나사 [THEREAD SIZE] X : NONE
FM5-1 : M5 male (IBL3.5)
FM5-2 : M5 male (IBL8, IBL10,IBL15)
FM5-3 : M5 male (IBL20)
F18M : PF 1/8 male (IBL20,30,40,50)
F18F : PF 1/8 female (IBL20,30,40,50)
F14M : PF 1/4 male (IBL30,40,50)
① 크기 ￠ [VACUUM PAD] 3.5 : ￠ 3.7
8 : ￠ 8.4
10 : ￠ 10
15 : ￠ 15
20 : ￠ 20
30 : ￠ 30
40 : ￠ 40
50 : ￠ 50
수직이송력(Kg)-20 Kpa-60 Kpa-90 Kpa
IBL 20 0.03 0.06
IBL 30 0.06 0.16
IBL 40 0.11 0.22
MODEL
Perpendicular
Lifting Force
Vaccum Pad 진공패드
166 아이백코리아166 아이백코리아
IBL Series
Vacuum Pad Vacuum Technology
진공패드
Vacuum Pad / IBL Series
IBL3.5 FM5-1 IBL3.5-(N)-FM5
IBL8 FM5-2 IBL8-(N)-FM5 IBL10 IBL10-(N)-FM5
IBL15 FM5-7×1.5 IBL15-(N)-FM5 FM5-2 IBL15-(N)-FM5-7×1.5
IBL20 FM5-3 F18M-1 F18F-1
IBL20-(N)-FM5 IBL20-(N)-F18M IBL20-(N)-F18F
www.ivackorea.com 167 www.ivackorea.com 167
IBL Series
Vacuum Pad Vacuum Technology
진공패드
Vacuum Pad / IBL Series
IBL30 IBL40
F18F-2 F18M-2 F14M-2
IBL30-(N)-F18F IBL30-(N)-F18M IBL30-(N)-F14M
IBL40-(N)-F18F IBL40-(N)-F18M IBL40-(N)-F14M
Vaccum Pad 진공패드
