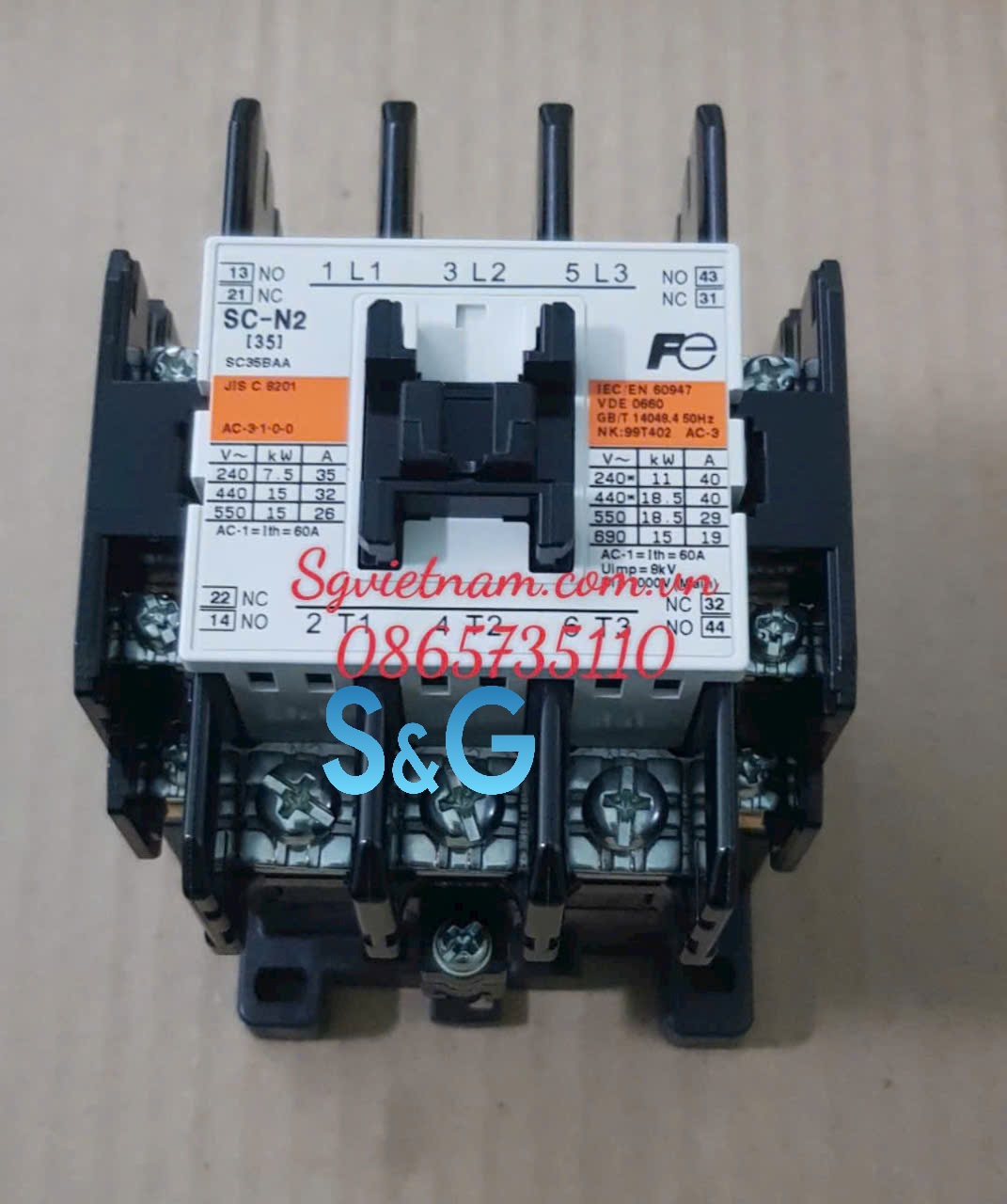

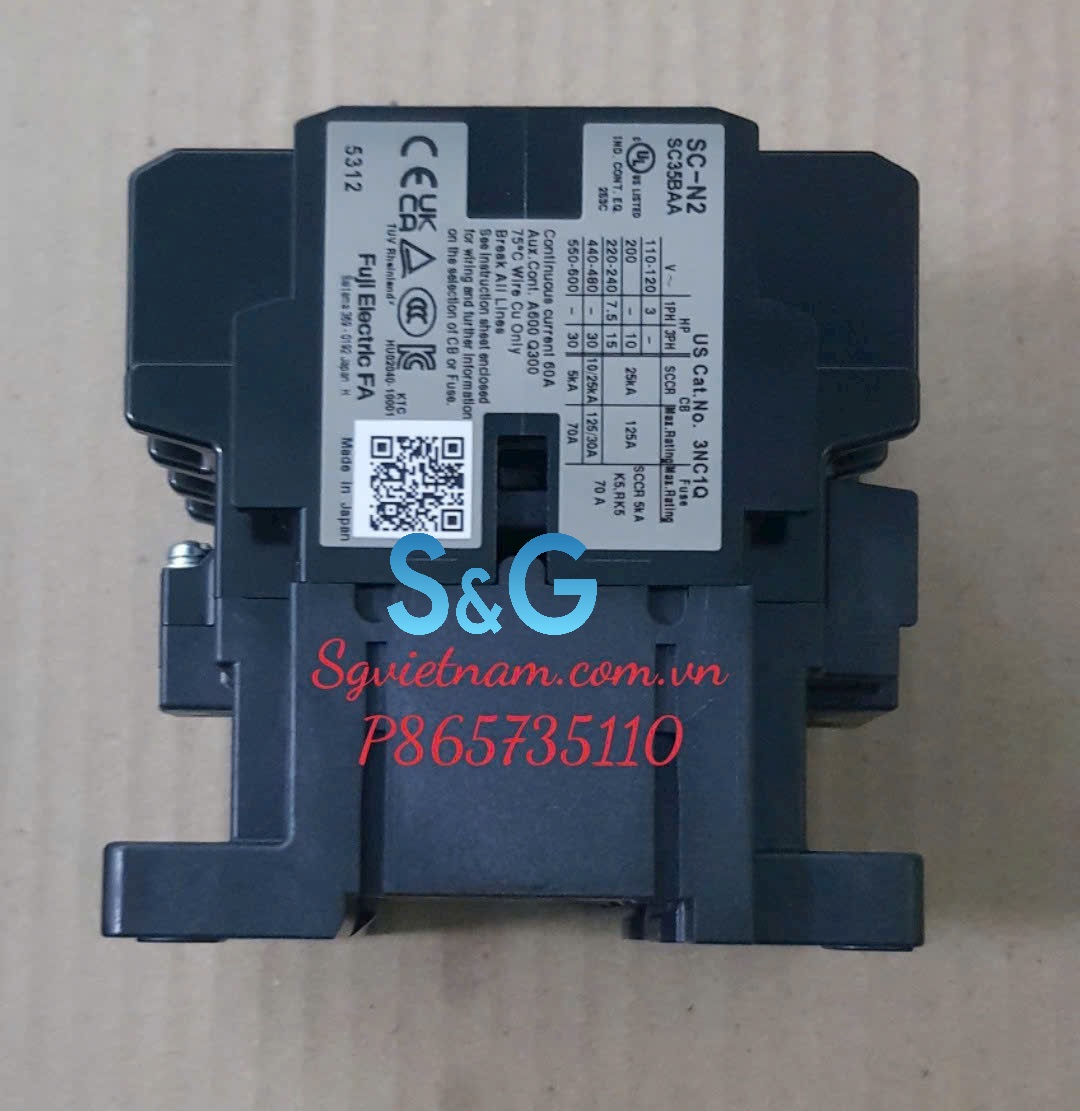

Standard type magnetic contactor, magnetic starter:SC and SW series
- The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.
Field modifications are quick and easy.
Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation. - Small frame contactors with new functions join the SC series. The SC line up, based on high technology, now extends from the SC-03 to the SC-N16. The SC series contactors have such options as additional auxiliary contact blocks and operation counter unit with snap-on fittings, and coil surge suppressors. Quick and easy modification on site. FUJI SC series (SC-N6 to N16) contactors have been developed and manufactured with our most advanced electronic technologies.
They employ an electronically-controlled SUPER MAGNET provided with a built-in IC, which enhances their performance and reliability.
The SUPER MAGNET is based on an “AC-input, DC-operated concept“, thus allowing the coil to be energized by both AC and DC input. Moreover, once closed, sealed current is controlled by switching circuit. perimts a great reduction in power consumption – a cost-effective feature.
The SC-N1 to SC-N5A do not have the SUPER MAGNET.
These contactors feature compact size, arc extinguishing mechanisms with a high breaking efficiency, low power consumption, easy operation, and ratings up to 660 volts. - JIS C 8201-4-1
IEC 60947-4-1
BS
EN 60947-4-1
UL 508
CSA C22.2
CCC (GB 14048.4)
NEMA
VDE 0660
TÜV (EN60947-4-1)
Feature
Design features
