Specification

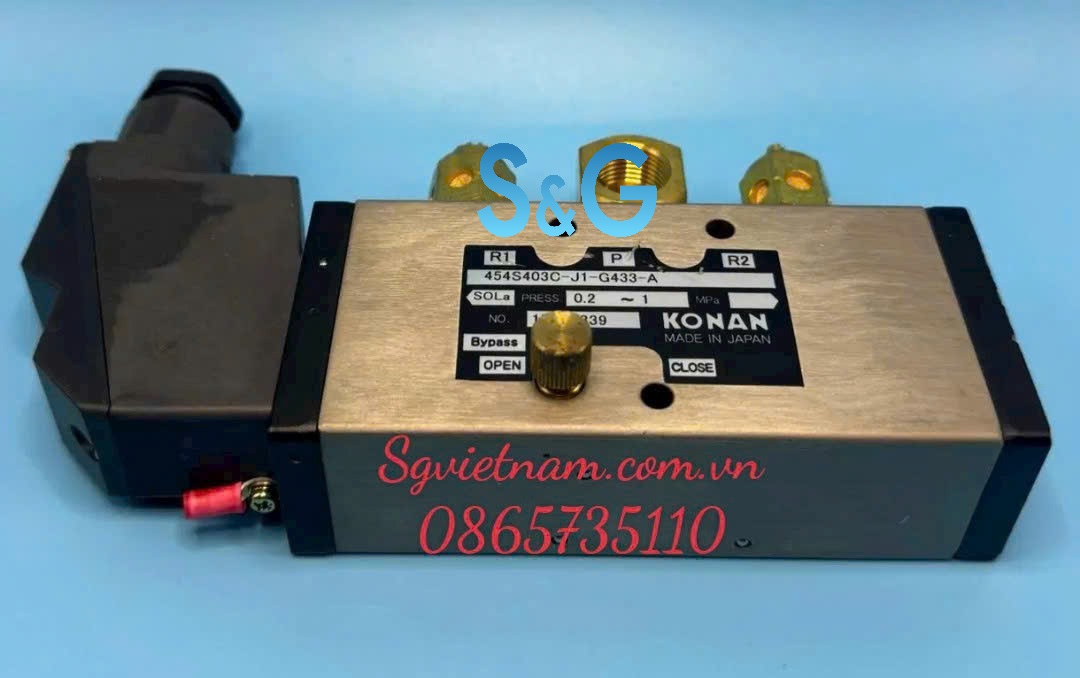

Type symbol		Return	４５４S ０４FC	４５４S ０４MC	４５４S ０９１C	４５４S ２０２K	４５４S ２０３K	４５４S ４０３C	４５４S ４０４C
		Hold	４５４D ０４FC	４５４D ０４MC	４５４D ０９１C	４５４D ２０２K	４５４D ２０３K	４５４D ４０３C	４５４D ４０４C
		Closed center	４５４H ０４FC	４５４H ０４MC	４５４H ０９１C	４５４H ２０２C	４５４H ２０３C	４５４H ４０３C	４５４H ４０４C
		Center open to exhaust	４５４J ０４FC	４５４J ０４MC	４５４J ０９１C	４５４J ２０２C	４５４J ２０３C	４５４J ４０３C	４５４J ４０４C
		Center open to pressure	４５４I ０４FC	４５４I ０４MC	４５４I ０９１C	４５４I ２０２C	４５４I ２０３C	４５４I ４０３C	４５４I ４０４C
Body type			Ｂ０４		Ｂ０９	Ｂ２０		Ｂ４０
Port size			４㎜ One-step fitting	Ｍ５	Ｒｃ１/ ８	Ｒｃ１/ ４	Ｒｃ３/ ８		Ｒｃ１/ ２
Effective sectional area			４㎜²		９㎜²	２２㎜²		４０㎜²
Operating pressure			０．２〜１．０MP ａ
Proof pressure			１．５MP ａ
Operating temperature			ー５〜５０℃（Remove moisture perfectly from the fluid to prevent freezing when used at ５℃ or lower.）
Solenoid	Allowable voltage fluctuation		±１０％ of applicable voltage
	Temperature rise		Max. ６０
	Insulation class		Class B
	Power consumption		AC：２Ｗ／ DC：３Ｗ
※ Response time			０. ０２s（０. ０３５s）		０. ０２s	０. ０４５s		０. ０６s
Performanse frequency			MAX. ４ cycles/s. １ cycle/mon.
Mass			Refer to the page of outside dimensions drawings
Applicable cylinder size(for reference)			φ３２以下		φ３２〜１００	φ８０〜１４０		φ１２５〜１８０
