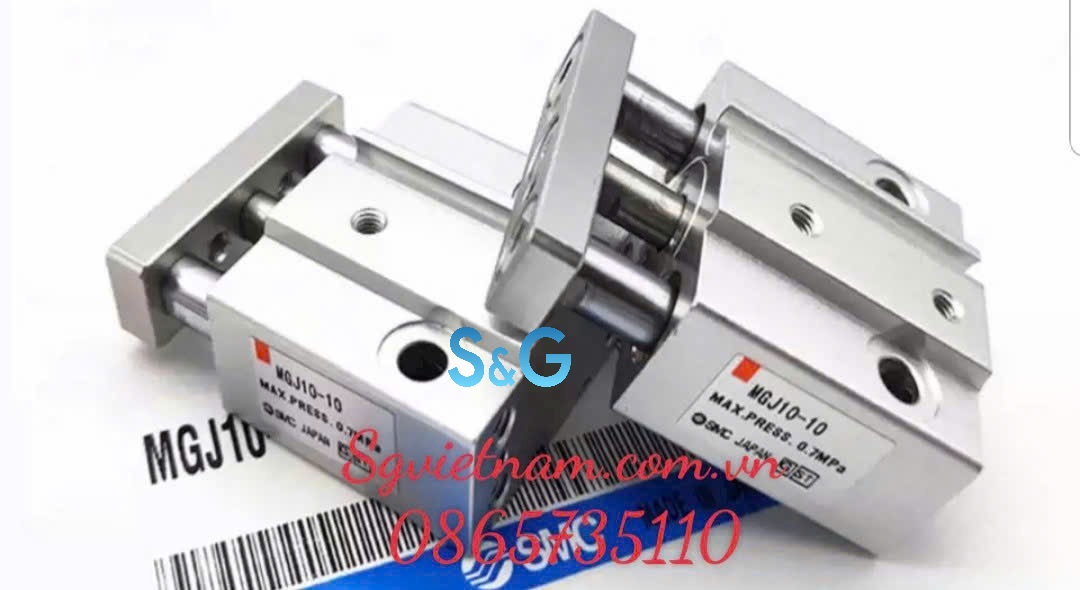

Xy lanh khí|cylinder|SMC|MGJ10-10-F8PL

Liên hệ

Cylinder (Tube) Inner Diameter(φ)	10	Stroke(mm)	10
Cylinder Operation Method	[Double Acting] Double Acting	Rod Operation Method	Single Rods
Main Body Shape	Guided	Additional Function	High rigidity / high precision high class guide
Environment, Applications	Standard	Operating Temperature(°C)	-10～60
End Locking	No	Valves	No
Operating Pressure(MPa)	0.15～0.7	Cushion	Rubber Bumper (Both Ends)
Specification	Without magnet	First-stage Stroke (Dual Stroke Only)	N/A
Port Thread Type	BSPT	Auto Switches	F8P
Lead Wire Length(m)	1	Number of Auto Switches	2
Auto Switch Mounting Style	Standard	Type of Mount Support	Standard
Tube Material	Standard	Custom-made Specifications	Standard
Specification of cylinder	Standard	Sealing materials	N/A
Grease	Standard	Connector Type	None
Coil scraper	N/A	Type	Standard
