| Cylinder Inner Diameter (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
|---|---|---|---|---|---|---|
| Piping connection port diameter | M5 × 0.8 | Rc1/8, NPT1/8, G1/8 | ||||
| Fluid | Air | |||||
| Action | Double acting type | |||||
| Operating Pressure | 0.15 to 0.7 MPa | |||||
| Guaranteed Proof Pressure | 1.05 MPa | |||||
| Ambient Temperature and Operating Fluid Temperature | -10 to 60°C | |||||
| Operating speed range (average operating speed)* | 50 to 500 mm/s (adjuster option / metal stopper: 50 to 200 mm/s) | |||||
| Cushioning | Rubber cushioning (standard, adjuster option, rubber stopper) Shock absorber (adjuster option / shock absorber) None (adjuster option / metal stopper) |
|||||
| Lubrication | Not required | |||||
| Auto Switch | Reed type auto switch (2-wire type, 3-wire type) Solid state auto switch (2-wire type, 3-wire type) 2-color indicator solid state auto switch (2-wire type, 3-wire type) |
|||||
| Stroke Length Tolerance | 0 to +1 mm | |||||
Precautions
Average operating speed: The speed obtained when the stroke is divided by the time required for the operation from beginning to end.
Standard Stroke
| Model | Standard Stroke (mm) |
|---|---|
| MXQ6 | 10, 20, 30, 40, 50 |
| MXQ8 | 10, 20, 30, 40, 50, 75 |
| MXQ12 | 10, 20, 30, 40, 50, 75, 100 |
| MXQ16 | 10, 20, 30, 40, 50, 75, 100, 125 |
| MXQ20 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
| MXQ25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
Theoretical Output
Drawing (OUT, IN)
Using dual rods provides double the output of conventional cylinders.
| Cylinder Inner Diameter (mm) | Rod Diameter (mm) | Operating Direction | Piston Area (mm2) | Operating Pressure (MPa) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | ||||
| 6 | 3 | OUT | 57 | 11 | 17 | 23 | 29 | 34 | 40 |
| IN | 42 | 8 | 13 | 17 | 21 | 25 | 29 | ||
| 8 | 4 | OUT | 101 | 20 | 30 | 40 | 51 | 61 | 71 |
| IN | 75 | 15 | 23 | 30 | 38 | 45 | 53 | ||
| 12 | 6 | OUT | 226 | 45 | 68 | 90 | 113 | 136 | 158 |
| IN | 170 | 34 | 51 | 68 | 85 | 102 | 119 | ||
| 16 | 8 | OUT | 402 | 80 | 121 | 161 | 201 | 241 | 281 |
| IN | 302 | 60 | 91 | 121 | 151 | 181 | 211 | ||
| 20 | 10 | OUT | 628 | 126 | 188 | 251 | 314 | 377 | 440 |
| IN | 471 | 94 | 141 | 188 | 236 | 283 | 330 | ||
| 25 | 12 | OUT | 982 | 196 | 295 | 393 | 491 | 589 | 687 |
| IN | 756 | 151 | 227 | 302 | 378 | 454 | 529 | ||
Precautions
Theoretical output (N) = Pressure (MPa) × Piston area (mm2)
(Unit: N)
Basic Information

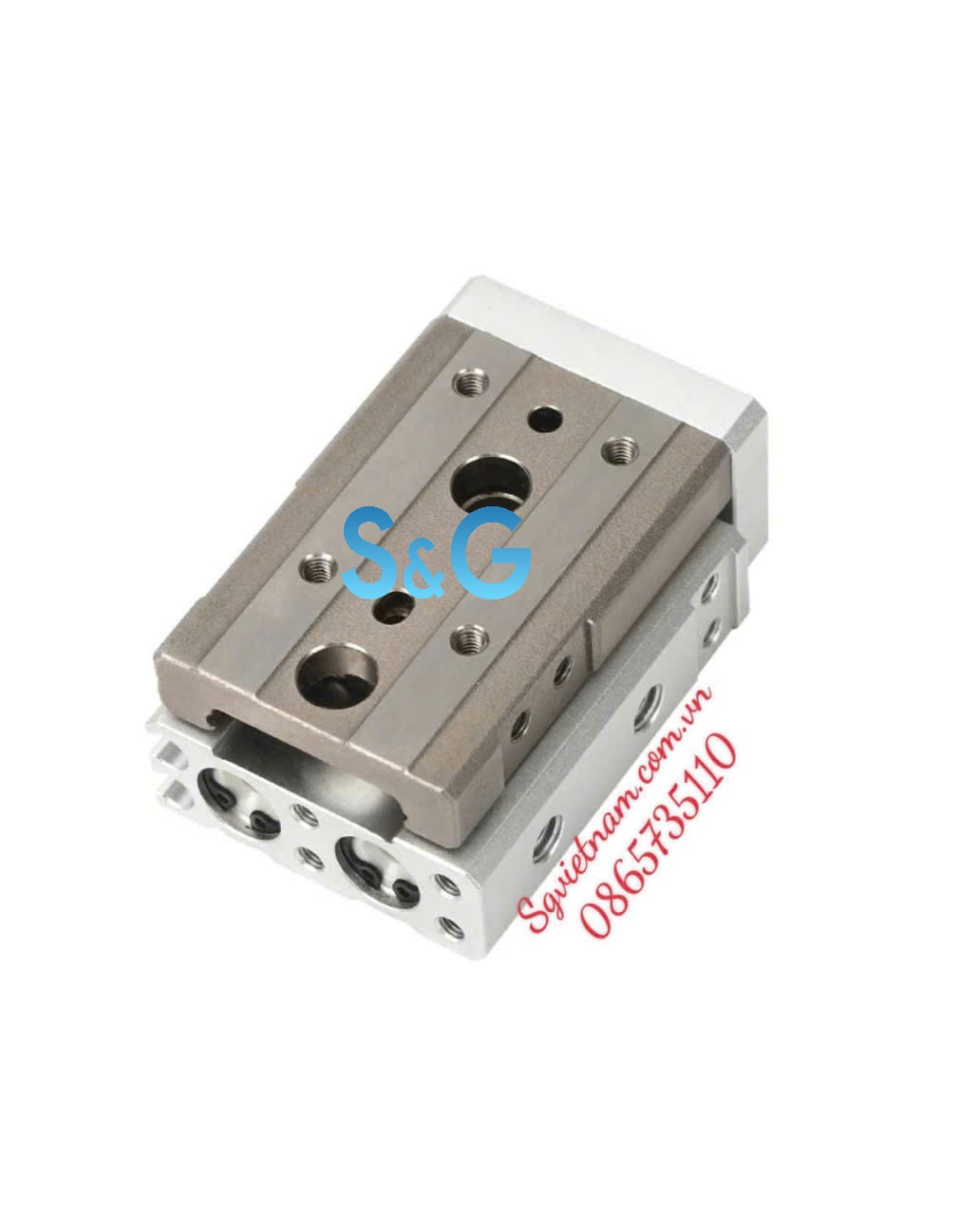

| Type | L-Shaped Table Type | Table Material | Aluminum | Guide Type | Linear guide type |
|---|---|---|---|---|---|
| Environment | General Purpose | Table Surface Treatment | Electroless Nickel Plating |
