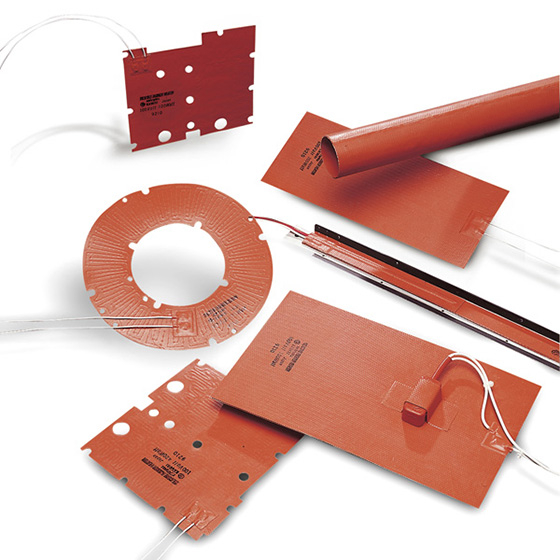

Silicon rubber heater Kawai

Thickness 0.043″ to 0.07″　/　1.1 mm to 1.8 mm
Dimensions (mm) 15 x 15 to 900 x ∞
(inch) 3/5 x 3/5 to 35.43 x ∞
Operating Temp.* -94 to 430ºF / -70 to 220ºC
Max. Watt Density* 16 W/in2　/　2.5 W/cm2
Max. Voltage (V) 300
Max. Resistance Density –
Wattage Tolerance +/-10%
Outer Dimension Tolerance –
Insulation Resistance (MΩ/DC V)** More than 1000/500
High Pot Test (V/min.) / (V/sec.) 1500 / 1800 (5 mA)
* Depending on heater specifications.
