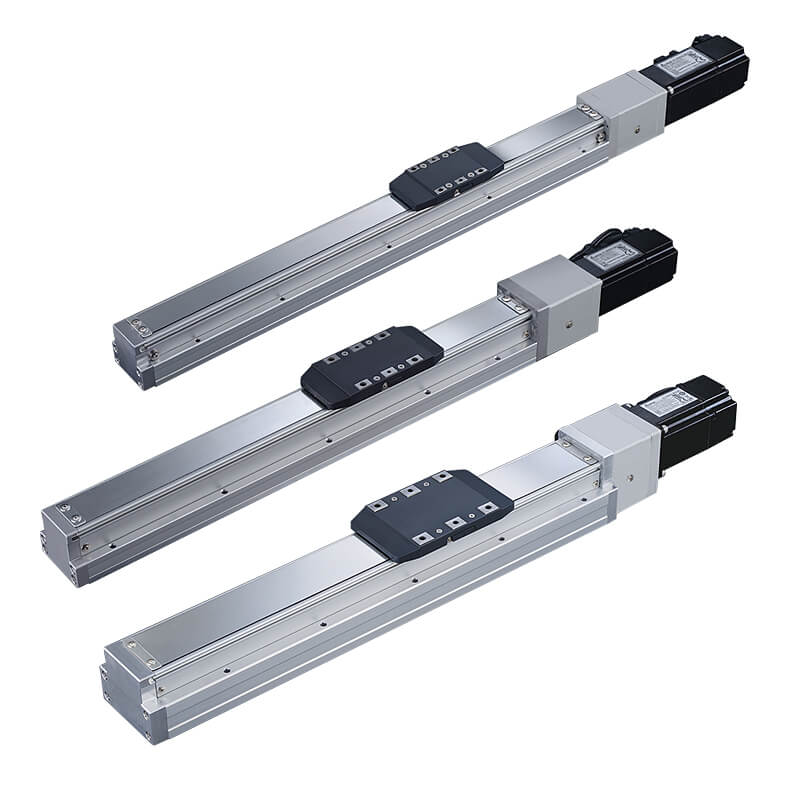

| Size | Small size: 4, 5, 8 |
|---|---|
| Repeatability (mm) | ±0.005 |
| Ball screw lead (mm) | 4: 2, 6, 12 5: 2, 5, 10, 20 8: 5, 10, 20 |
| Max. speed (mm/s) | 4: 100, 300, 600 5: 100, 250, 500, 1000 8: 250, 500, 1000 |
| AC servo motor | 4: 50W, 100W 5: 100W 8: 200W, 400W |
| Max. payload (kg) | Horizontal- 4: 25, 20, 12, 5: 30, 15, 10, 8: 50, 30, 18 Vertical- 4: 8, 5, 2, 5: 10, 5, 2.5, 8: 15, 8, 3 |
| Rated thrust (N) | 4: 424, 414, 71 5: 854, 341, 170, 85 8: 683, 341, 174 |
| Stroke (mm) | 4: 50~800 / 50 pitch 5: 50~800 / 50 pitch 8: 50~1100 / 50 pitch |
| Ball screw ø (mm) | 4: C7ø8 5: C7ø12 8: C7ø16 |
| Coupling (mm) | 4: 7×8, 5: 7×8 8: 10×14/11 |
| Home sensor (Outside) | EE-SX674 (NPN) |
| Remark | * When the stroke is over 300mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances. * Acceleration and deacceleration value is set 0.2 second. |
