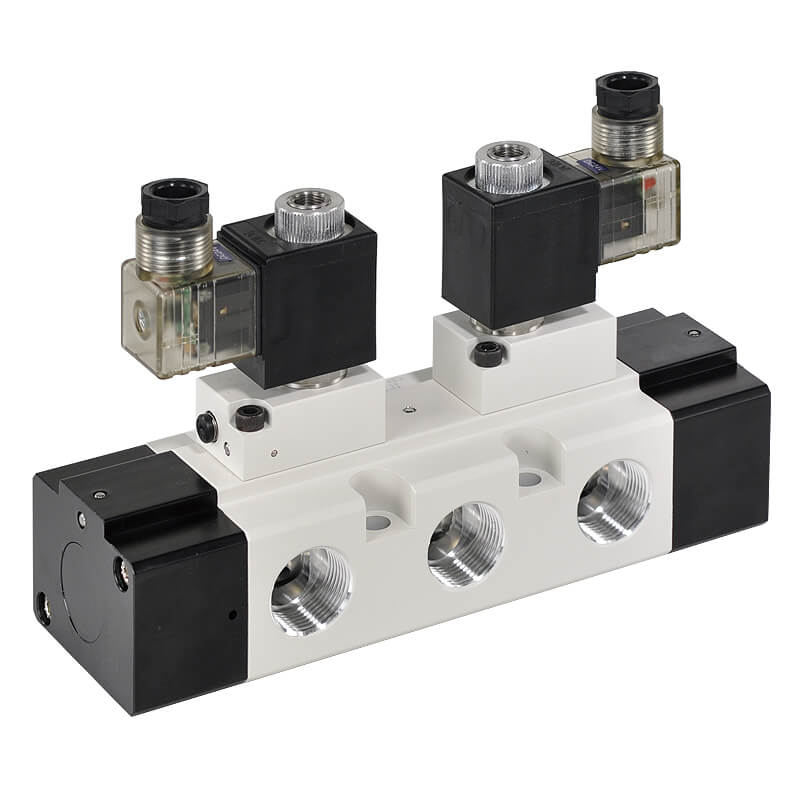

Solenoid valve MVSE-600 MINDMAN











Body width 60 mm
Bore No. 20A, 25A
Port size 3/4, 1
No. of port 5
No. of position 2
Medium Air
Operating pressure range 0.2~0.7 MPa
Proof pressure 1 MPa
Flow 5227 l/min(20A), 5440 l/min(25A)
Effective orifice 20A: 96 mm2、25A: 100 mm2
Response time 80 ms
Ambient temperature -5~+50℃ (No freezing)
Voltage AC110V, AC220V (50/60)Hz, DC24V
Power consumption AC=13/11VA, DC=10W
Available voltage range ±10%
Insulation class H class
Weight 1817g, 2102g
.
.
.
.
