■ Features

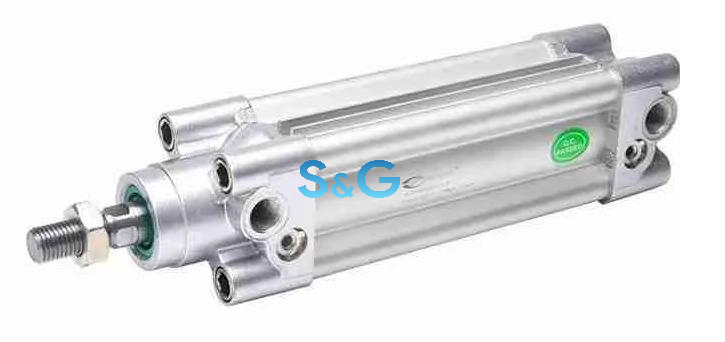

1. ISO 15552 CP96 series standardized pneumatic cylinder is available with single or double rod in 6 bore sizes from ø32 to ø100mm.
2. Increasing the precision of the bushing and stem, as well as reducing tolerances, has decreased stem deflection.
3. Double-acting pneumatic cylinder, standard strokes range from 25 to 800mm.
■ How to order CP96 series ISO 15552 standardized pneumatic cylinder
■ Specs
| Diameter (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| medium of work | Clean air (filtered 40㎛) | |||||
| Action type | Double effect | |||||
| Test pressure | 1,5 Mpa | |||||
| Max. pressure Working pressure | 1,0 Mpa | |||||
| Min. Working pressure | 0,05 Mpa | |||||
| Working temperature | Without automatic switch: -20 to 70℃ (No freezing) with automatic switch: -10 to 60℃ (No freezing) |
|||||
| Lubrication | Not required (No lubricant) | |||||
| Speed range | 50 a 1000Mm/s | |||||
| Stroke tolerance | Up to 500 strokes 0 to +2.0, 501 to 1000 stroke: 0 to +2.4, 1001 to 1500 stroke: 0 to +2.8, 1501 to 2000 stroke: 0 to +3.2 |
|||||
| Shock absorber type | Air shock absorber at both ends + Bumper shock absorber | |||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 |
| Mounting | Basic, Axial foot-LB, Stem flange-FA, Head flange-FB, Single Fork-CA, Double Fork-CB |
|||||
| Precision without rotation | ±0,5° | ±0,5° | ±0,3° | |||
| Permissible torque | 0,25N·m | 0,45N·m | 0.64N m | 0,79N·m | ||
