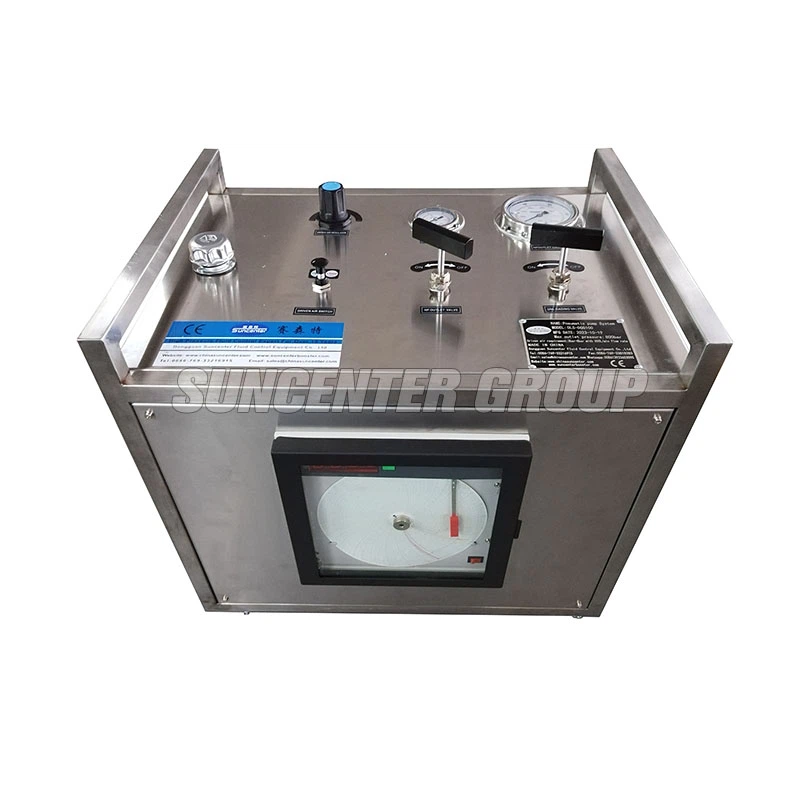

Suncenter DLS Series hydraulic pressure test bench With Round Chart Recoder
SUNCENTER- Hydraulic test benches are compact and delicacy solution tailored to customer specific requirements with air driven liquid pumps as well as all accessories to be fitted and installed on the frame or in closed cabinet.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The hydrostatic pressure pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. SUNCENTER Hydraulic pressure power packs are available with wide range of pressure ratios make these series of liquid pumps ideal for powering a variety of oil/hydraulic operations. The maximum operating pressure up to 640 MPa.
As the pressure will be generated by means of a pneumatically operated pump,the electric connection will not be necessary. To operate this system, the air hydraulic pump have to be equipped with the air control unit combined filter and water separator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value. This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
LS-DGG Series
Model
Pressure boost ratio
Driven air pressure
Max outlet pressure
Driven air inlet port
Liquid inlet port
Liquid outlet port
Max Flow rate (L/min)
DLS-DGG7
7:1
3-8 bar
56 bar
G 1/2
PT 1/2
PT 1/2
26
DLS-DGG10
10:1
3-8 bar
80 bar
G 1/2
PT 1/2
PT 1/2
18.84
DLS-DGG16
16:1
3-8 bar
128 bar
G 1/2
PT 1/2
PT 1/2
12.42
DLS-DGG28
28:1
3-8 bar
224 bar
G 1/2
PT 1/2
PT 1/2
7.11
DLS-DGG40
40:1
3-8 bar
320 bar
G 1/2
PT 3/8
PT 3/8
4.89
DLS-DGG64
64:1
3-8 bar
512 bar
G 1/2
PT 3/8
PT 3/8
3.08
DLS-DGG80
80:1
3-8 bar
640 bar
G 1/2
PT 3/8
PT 3/8
2.44
DLS-DGG100
100:1
3-8 bar
800 bar
G 1/2
PT 3/8
PT 3/8
1.92
DLS-DGG130
130:1
3-8 bar
1040 bar
G 1/2
PT 3/8
PT 3/8
1.47
DLS-DGG175
175:1
3-8 bar
1400 bar
G 1/2
PT 3/8
PT 3/8
1.14
DLS-DGG240
240:1
3-8 bar
1920 bar
G 1/2
PT 3/8
PT 3/8
0.86
DLS-DGG300
300:1
3-8 bar
2400 bar
G 1/2
PT 1/4
HF 4
0.72
DLS-DGG400
400:1
3-8 bar
3200 bar
G 1/2
PT 1/4
HF 4
0.48
DLS-DGG510
510:1
3-8 bar
4080 bar
G 1/2
PT 1/4
HF 4
0.70
