•Designed for pressuring water / oil and injecting chemical reagent
•Driven by 3-8 bar compressed air, no electric spark risk
•Various outlet pressures for your choice, maximum pressure up to 6400 bar
•Outlet pressure adjustable

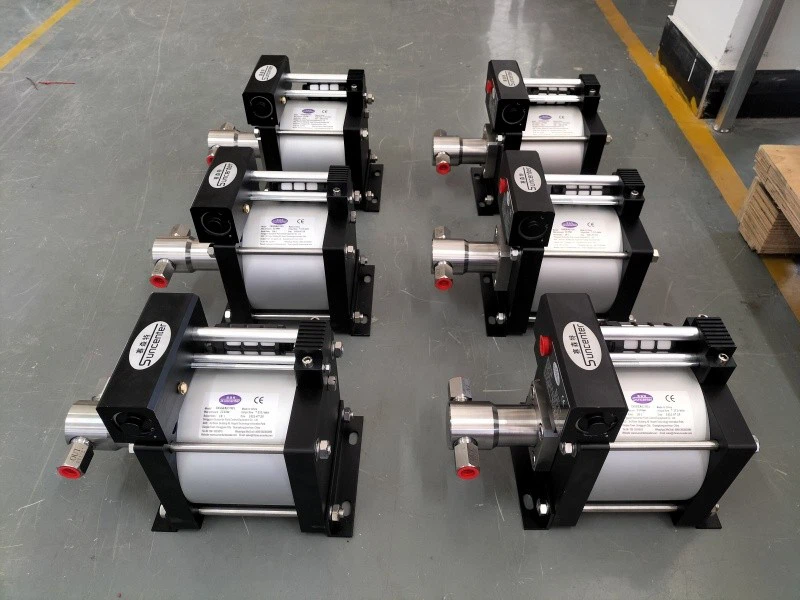

product-960-640
Features
Designed for pressuring water / oil and injecting chemical reagent
Driven by 3-8 bar compressed air, no electric spark risk
Various outlet pressures for your choice, maximum pressure up to 6400 bar
Outlet pressure adjustable
Automatic pressure holding, the booster will automatically restart to replenish pressure once the loop pressure dropped
Easy to install, operate and maintain
Model
Boost ratio
Driven air pressure
Max outlet pressure
Driven air inlet port
Liquid inlet port
Liquid outlet port
Max Flow rate (Ln/min)
DGG07
7:1
3-8 bar
56 bar
G 1/2
PT 1/2
PT 1/2
26
DGG10
10:1
3-8 bar
80 bar
G 1/2
PT 1/2
PT 1/2
19
DGG16
16:1
3-8 bar
128 bar
G 1/2
PT 1/2
PT 1/2
13.4
DGG28
28:1
3-8 bar
224 bar
G 1/2
PT 1/2
PT 1/2
7.4
DGG40
40:1
3-8 bar
320 bar
G 1/2
PT 3/8
PT 3/8
5.24
DGG64
64:1
3-8 bar
512 bar
G 1/2
PT 3/8
PT 3/8
3.76
DGG80
80:1
3-8 bar
640 bar
G 1/2
PT 3/8
PT 3/8
2.75
DGG100
100:1
3-8 bar
800 bar
G 1/2
PT 3/8
PT 3/8
2.2
DGG130
130:1
3-8 bar
1040 bar
G 1/2
PT 3/8
PT 3/8
1.63
DGG175
175:1
3-8 bar
1400 bar
G 1/2
PT 3/8
PT 3/8
1.36
DGG240
240:1
3-8 bar
1920 bar
G 1/2
PT 3/8
PT 3/8
0.86
DGG300
300:1
3-8 bar
2400 bar
G 1/2
PT 1/4
HF4
0.72
DGG400
400:1
3-8 bar
3200 bar
G 1/2
PT 1/4
HF4
0.5
DGG512
512:1
3-8 bar
4096 bar
G 1/2
PT 1/4
HF4
0.7
DGG640
640:1
3-8 bar
5120 bar
G 1/2
PT 1/4
HF4
0.62
DGG800
800:1
3-8 bar
6400 bar
G 1/2
PT 1/4
HF4
0.45
