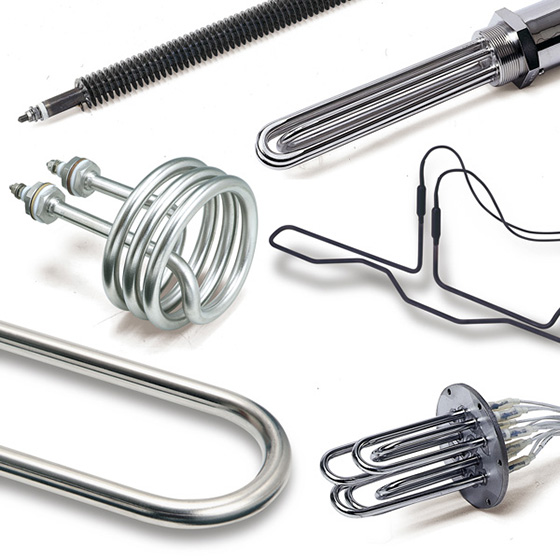

Tubelar heater Kawai

Sheath Length 10″ to 14 ft.　/　250 mm to 4300 mm
Diameter (Φ) (mm) 5.3, 6.5, 8, 10, 12, 14, 16
(inch) 1/5, 1/4, 0.31, 0.4, 0.47, 0.55, 0.63
Operating Temp.* Up to 1560ºF / 850ºC
Max. Watt Density* 77.5 W/in2 (immersion)　/　12 W/cm2 (immersion)
Max. Voltage (V) –
Max. Resistance Density –
Wattage Tolerance +/-10%
Outer Dimension Tolerance –
Insulation Resistance (MΩ/DC V)** More than 1000/500
High Pot Test (V/min.) / (V/sec.) 1500 / 1800 (5 mA)
