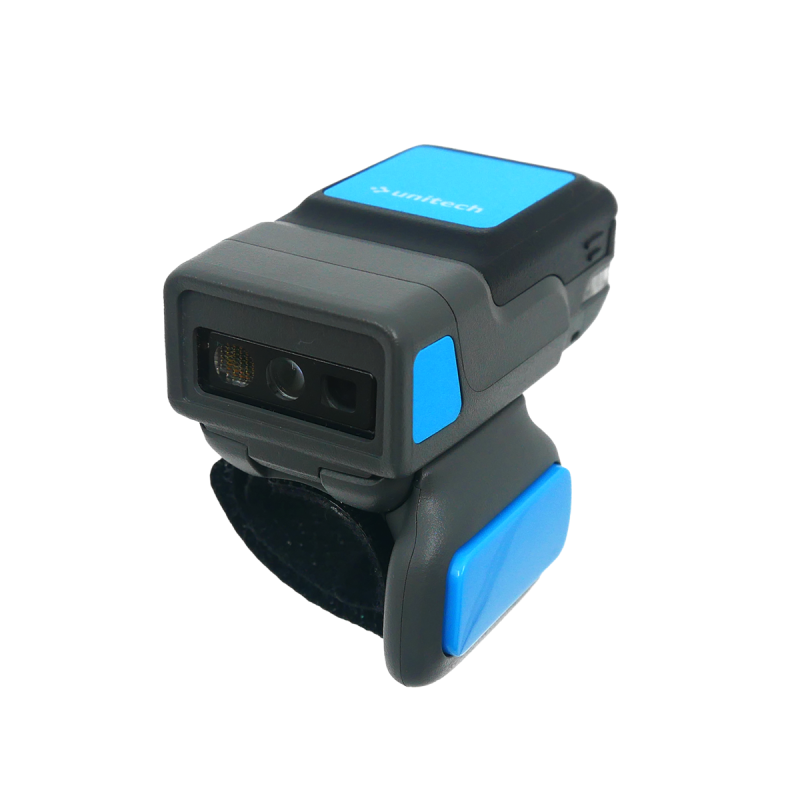

Unitech MS633 Bluetooth 2D Ring Scanner
The MS633 ring scanner boasts a wearable design, providing unparalleled freedom of movement. This design allows for comfortable barcode scanning tasks, enabling users to keep both hands free for other activities.
Features
• Lightweight and unique wearable ring design
• Premier barcode reading distance : Up to 12M
• One push rotate design allows right and left hand operation switch easily
• Flexible wireless design for extended operation ranges
• Changeable and rechargeable battery pack
• Full Shift Battery Life: Up to 9 Hours
• Instant decoding feedback: LED, Buzzer and Vibrator indicators.
• Support unitech software solutions, ScanBridge Utility and Scanner SDK
Lightweight Design
Weighing just 56 grams, the MS633 Series Bluetooth 2D Ring Scanner combines an incredibly lightweight design with powerful scanning capabilities, making it ideal for comfortable and efficient use over long periods. Designed for various industries, including retail, inventory, warehousing, and logistics, its focus on ease of use and minimizing user fatigue enhances both comfort and operational efficiency in professional settings.
Superior Middle Range Scanning Capability
Featuring an exceptional middle range scanning capability of up to 12 meters, the MS633 Series stands out in its class. This allows users to effortlessly capture barcodes from a distance, enhancing workflow and reducing the need to physically handle items.
Hands-Free Operation
The MS633 Series enhances workplace flexibility and comfort with its practical hands-free design. Adaptable for both left and right-handed users, it improves usability across different work environments. This adaptability supports easy hand-switching to reduce fatigue and ensure continuous operation, making it ideal for high-mobility sectors. Its design contributes to safety and productivity by allowing users to keep their hands free for other tasks, aligning with demands for efficiency and operational safety.
Flexible Wireless Communication
This feature allows for seamless data collection processes across extensive areas, ensuring employees stay connected and maintain productivity, even when they’re not at their desks. It’s particularly advantageous in large environments like warehouses and retail spaces, where the ability to move freely without losing connection is crucial for efficiency.
Unitech Software Solutions Support
Enhanced by the support for Unitech’s proprietary software solutions, including ScanBridge Utility and Scanner SDK, the MS633 is not just a tool but a comprehensive solution. These software integrations allow for a tailored user experience, ensuring the scanner operates at peak efficiency within your specific operational ecosystem. The inclusion of these solutions underscores the scanner’s versatility, enabling it to meet diverse industry requirements and streamline workflows.
Specification
Optical & Performance
SensorMS633: CMOS Image (1280 x 960 pixels)
MS633 LR: CMOS Image (2688 x 1520 pixels)
Aiming ElementGreen Laser
IlluminationMS633: 1 Warm-White LED
MS633 LR: 2 Warm-White LED
Ambient LightMax 107,639 lux (direct sunlight)
Skew Angle±60°
Pitch Angle Sensor±60°
Roll Angle360°
Field of ViewMS633: 44.5º horizontal, 33.5º vertical
MS633 LR: 37º horizontal , 21º vertical
Depth of FieldMS633:
5mil Code39: 6.1cm~24.1cm/2.4in.~9.5in.
5mil Code128: 7.1cm~22.9cm/2.8in.~9.0in.
6.67mil PDF417: 6.1cm~20.3cm/2.4in.~8.0in.
10mil DataMatrix: 7.4cm~21.6cm/2.9in.~8.5in.
100% UPCA: 4.6cm~49.5cm/1.8in.~19.5in.
15mil QR Code: 3.0cm~29.2cm/1.2in.~11.5in.
20mil QR Code: 3.0cm~35.6cm/1.2in.~14.0in.
MS633 LR:
3mil Code 39: 6.9cm~41.1cm/2.7in.~16.2in.
5mil Code 39: 6.4cm~67.6cm/2.5in.~26.6in.
5mil PDF417: 7.1cm~49.8cm/2.8in.~19.6in.
6.7mil PDF417: 6.6cm~65cm/2.6in.~25.6in.
10mil DataMatrix: 5.6cm~68.8cm/2.2in.~27.1in.
100% UPC(13mil): 6.4cm~180cm/2.5in.~71in.
15mil Code 128: 18.2cm~182.9cm/7.2in.~72in.
200mil DataMatrix: 20cm~1440cm/7.9in.~566.9in.
200mil QR: 25cm~1800cm/9.8in.~708.7in.
Communication
RadioBluetooth® HID Keyboard, SPP and BLE 4.2
Wireless Coverage> 164.04ft./50m(without obstructions)
Host Interface supportedUSB Type-C
(USB HID Keyboard, USB VCP (Virtual Serial Port)
Mechanical
DimensionMS633: 64.8mm(L)×34.5mm(W)×24.7mm(D)
MS633 LR: 70.0mm(L)×36.4mm(W)×28.4mm(D)
WeightMS633: 56g
MS633 LR: 67g
Trigger Switch Life500,000 times
Symbologies
1D BarcodesCode39, Code128, Codabar, Code11,
UPC/EAN, 2of5 Databar, Code39, MSI,
UK Plessy, Telepen, Composite, TLC-39
2D BarcodesPostal Codes, PDF, Micro PDF,
Composite, TLC-39, Aztec, Data Matrix,
QR, Maxicode, Han Xin, Grid Matrix, OCR
Electrical
IndicatorLED, Buzzer, Vibration
Battery Capacity600mAh
Battery Charging time2hrs.
Operating Time9hrs.
Environmental
ESD ProtectionFunctional after 4K Contact and 8K Air
Mechanical ShockMultiple 4.9 ft./1.5 m drops to concrete over the
operating temperature range
Operating Temperature14°F ~ 122°F / -10°C~50°C
Storage Temperature14°F ~ 122°F / -10°C~50°C
Relative Humidity5% to 85% non-condensing
Accessories
Items■ MS633 600mAh Battery (PN#1400-900075G)
■ MS633LR 600mAh Battery (PN#1400-900076G)
■ 2 Bay Battery Charger (PN#5100-900036G)
■ Finger Holder (PN#620224G)
■ USB Type-C cable (PN#1550-905919G)
■ Power Adaptor (PN#1010-900058G)
Regulatory Approvals
Regulatory ApprovalsCE, FCC, TELEC, NCC, BSMI, RoHS
What comes in the box
The standard package contents■ MS633 / MS633 LR Scanner
■ 600mAh Battery
■ Finger Holder
■ USB Type-C cable
