Upright fluorescence microscope XSP-10C series Shjingmi

1
Model: XSP-10C series
Name: Upright fluorescence microscope
Epifluorescence microscope is suitable for fluorescence microscopy and transmission field observation, and is an instrument for research in biology, cytology, oncology, genetics, immunology and other research work.
Model name observe Total magnification Optical system remark
XSP-10C Fluorescence microscope is set up Three eyes 40X-1000X Converter: 4 holes
XSP-12C Fluorescence microscope is set up Three eyes 40X-1000X Converter: 5 holes
2
Model: XDY series
Name: Inverted fluorescence microscope
Epifluorescence microscope is suitable for fluorescence microscopy and transmission field observation, and is an instrument for research in biology, cytology, oncology, genetics, immunology and other research work.
Model name observe Total magnification Optical system remark
XDY-1 Inverted fluorescence microscope Three eyes 100X-400X
XDY-2 Inverted fluorescence microscope Three eyes 100X-400X Infinity optical system has better
imaging quality
3
Model: XSP-32 series
Name: epifluorescence microscope
Epifluorescence microscope is suitable for fluorescence microscopy and transmission field observation, and is an instrument for research in biology, cytology, oncology, genetics, immunology and other research work.
Model name observe Total magnification Optical system remark
XSP-32 Epifluorescence microscope Three eyes 40X~1000X Infinity optical system has better
imaging quality Blue-green stimulates
XSP-32(LED) Epifluorescence microscope Three eyes 40X~1000X Infinity optical system has better
imaging quality Blue-green excites
LED light sources
4
Model: XSP-36 series
Name: epifluorescence microscope
Epifluorescence microscope is suitable for fluorescence microscopy and transmission field observation, and is an instrument for research in biology, cytology, oncology, genetics, immunology and other research work.
Model name observe Total magnification Optical system remark
XSP-36 Epifluorescence microscope Three eyes 40X~1000X Infinity optical system has better
imaging quality Blue-green excitation
Ultraviolet excitation
XSP-36(LED) Epifluorescence microscope Three eyes 40X~1000X Infinity optical system has better
imaging quality Blue-green excitation
UV excitation
LED light source
5
Model: XSP-10C, 12C (upright, fluorescent).
Name: Upright fluorescence microscope
Product Introduction
XSP-10C Upright Biofluorescence Microscope: It is a four-well converter with blue-green excitation device. and blue-green, UV excitation optional
XSP-12C epifluorescence microscope: 5-well converter, can be equipped with 5 objectives at the same time, excitation device excitation device has blue-green excitation. and blue-green, UV excitation optional
Eyepiece: Large field of view, 10X(φ16mm,16X(φ11mm) Objective
: Fluorescence objective, FL25X/0.65,FL40X/1.0(glycerin)(spring), FL100X/1.25(glycerol)(spring).
Objective: Flat field achromatic objective, PL4X/0.10, PL10X/0.25, PL25X/0.40, PL40X/0.65 (spring, PL100X/1.25 (oil) (spring)
Converter: 4-hole, 5-well
Epifluorescence device: power box, mercury lamp box, fluorescence epi-illuminator (including trinocula, blue, green excitation system)
Photographic device: 2.5X/ 4X Zoom Camera, 10X Viewfinder Eyepiece, 4X Focus Camera
Darkfield Condenser: Dry NA=0.77~0.91, Wet NA=1.25~1.40
Phase Contrast Device,
Phase Contrast Flat Field Achromatic Objective: PL10X/0.25PHP,PL25X.0.4PHP,PL40X/0.65PHP (Spring) PL100X/ 1.25PHP (oil) (spring) Phase-contrasting
condenser type I NA=1.25
Phase-contrasting condenser type II NA=1.25
Aligned telescope
6

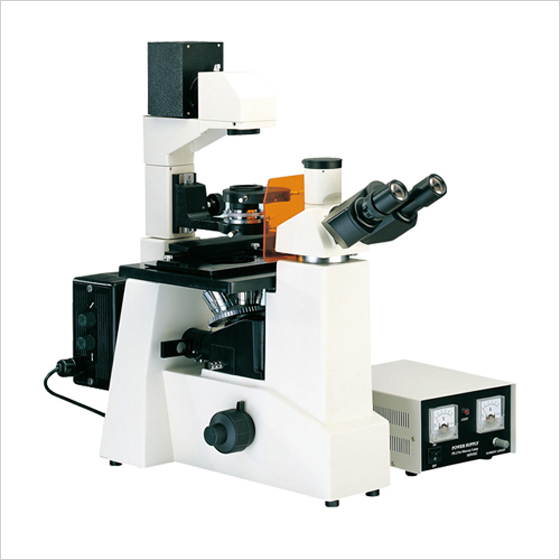

Model: XDY-1,2 (inverted fluorescence, inverted for large samples).
Name: Inverted fluorescence microscope (binocular, trinocular lens).
Product Introduction
Inverted fluorescence, inverted is suitable for larger samples.
XDY-2, is bi-visual
XDY-1, is tri-objective
Each model can choose fluorescence excitation segment, blue-green excitation, blue-green, UV excitation
Large field of view eyepiece: WF10X (Φ20mm)
Long working distance flat field achromatic objective:
PLL10X/0.25, 8.8mm,
PLL25X/0.404.78mm
PLL 40X/0.60 (spring) 3.32mm
trinocular head (100% transluminal photography)
Inverted transmitted lighting: 6V30W halogen lamp, brightness adjustable
epifluorescence system: domestic 100W high-pressure mercury lamp
blue excitation wavelength : 420~485nm
Green excitation wavelength: 460~550nm
UV excitation wavelength: 330~400nm
Violet excitation wavelength: 395~415nm
Stage: Detachable moving table, size: 208mmX224mm, moving range: 79mmX112mm
converter : Five-hole, ball-in-positioning inward bend
Phase contrast device: Long working distance flat-field achromatic phase contrast objective
PLL10X/0.25PHP2 8.8mm
PLL25X/0.40PHP2 4.78mm
PLL40X/0.60PHP2 3.32mm
Phase contrast device: Axis phase contrast device
Phase contrast device: Aligning telescope
Phase contrast device: Extra long working distance condenser, adjustable lifting, NA=0.4, Working distance: 50mm
specimen rack, suitable for placing Φ68mm or 77mmX29mm incubators, 128mmX85mm 96-well incubators, 82mmX57mm
