■ Features

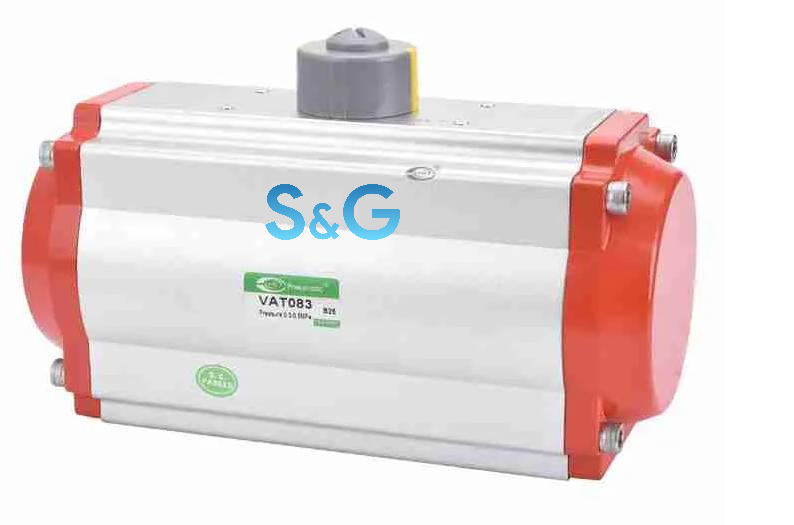

1. Pneumatic actuator Vat ISO 15552 Series are linear piston tires of simple or double low maintenance piston in which the linear movement of the piston due to pilot air causes a 90º turn of the connected valve.
2. The actuator-valve coupling is performed through a universal mechanical interface ISO 5211. The ball or butterfly valve status can be controlled by the 1061 feedback switches.
■ Working medium
1. Pneumatic actuator Vat series dry or lubricated air, or inertia gas, which must be compatible with the interior parts and the cylinder lubricant.
2. The temperature of the operation is of a minimum of -20 ℃.
3. La dimensión de la partícula de impureza es como máximo de 30μ. Si se necesita el posicionador, la dimensión puede ser en el mayor de 5μ.
■ Specs
| Type | Actuadores neumáticos serie VAT | |
|---|---|---|
| Presión de la fuente de aire | 3bar a 8bar | |
| Operating temperature | Standard | -20℃~+80℃ |
| Baja temperatura | -40℃~+80℃ | |
| Alta temperatura | -20℃~160℃ | |
■ Dimensions
