Application
Solar tracker/ Sun tracker / solar tracking system /Sun Tracking System / Tracker Sun Hunter / Photovoltaic (PV) Tracker / Solar Panel Tracker / Solar Module Tracker / PV Panel Tracking System / Solar Energy Tracker
Features
High efficiency: BLDC motors are generally very efficient and can convert electrical energy into mechanical energy more efficiently than brush motors.
Long life: Because brushless motors have no carbon brushes, which reduces wear and tear, they generally have a longer service life than brushed motors.
Low maintenance: The absence of carbon brush components means brushless motors do not require regular replacement of carbon brushes and require less maintenance.
High reliability: Due to its simple structure, small component wear, lower failure rate and better reliability.
Low noise: Brushless motors emit less noise when running than brushed motors, which is especially important in noise-restricted areas.
Smooth torque: The torque provided by the BLDC motor is relatively smooth, without torque fluctuations caused by brushes.
Precise control: With the appropriate driver and control system, brushless motors can achieve very fine speed and position control.
Fast response: The brushless motor responds quickly to acceleration and deceleration, and can quickly adapt to changes in the sun’s position.
Strong environmental adaptability: The design of BLDC motor enables it to work normally in a variety of environments, including high temperature, low temperature and high humidity environments.
Energy saving and emission reduction: High efficiency means less power waste, which is in line with the sustainable development concept of solar power generation.
Specification Parameters
Motor Model Rated Voltage
(VDC) Rated Current
(A) Rated Torque
(Nm) Rated Speed
(r/min) Rated Power
(W) IP Rating

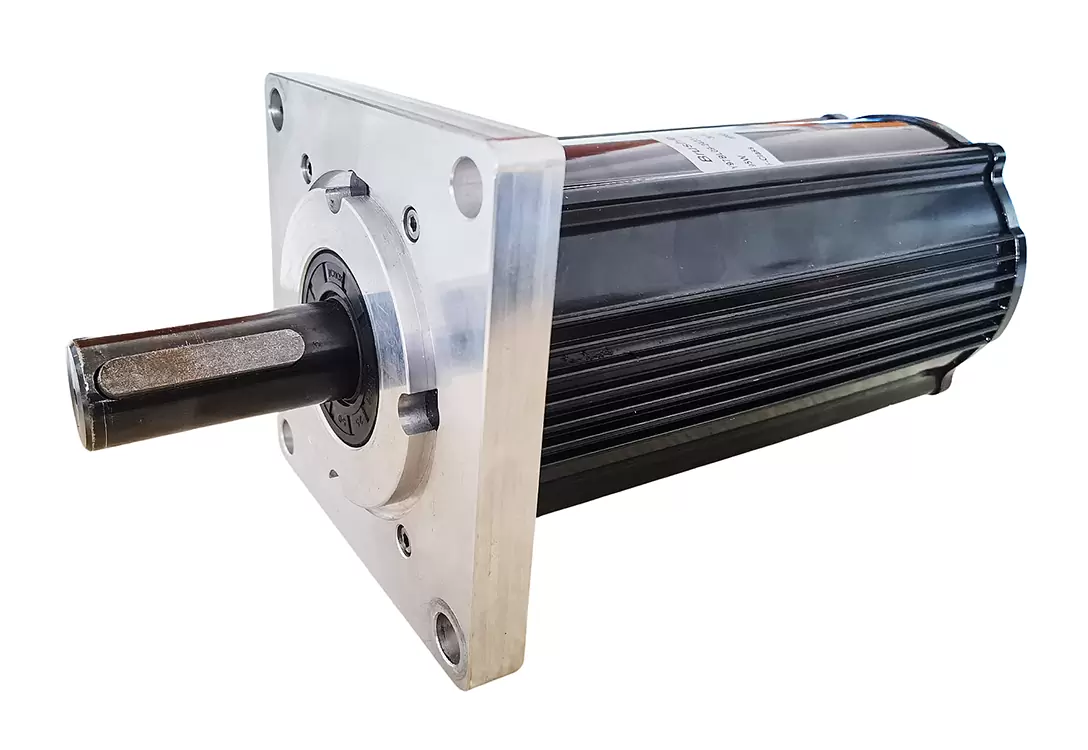

Y97BL09-2423-J776 24 6.00 300 3 95 65
