Main functions and benefits

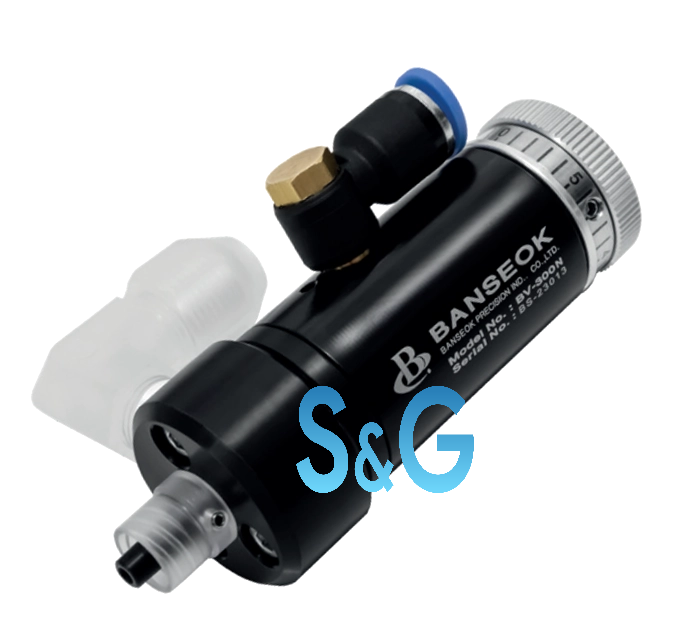

The BV-300N Diaphragm Valve is an entry-level valve designed for low-viscosity fluid dispensing. Featuring a diaphragm operation and needle type, this valve is equipped with liquid-contact parts made from UPE material, ensuring compatibility with anaerobic fluids and chemical-resistant materials. The use of UPE material enhances the valve’s resistance to aggressive chemicals and anaerobic environments, making it ideal for a variety of applications in industries such as pharmaceuticals, electronics, and chemical processing.
Applicable materials
- Anaerobic Fluid Compatibility: UPE material provides excellent resistance to anaerobic fluids and chemical-resistant applications.
- Low-Viscosity Fluid Dispensing: Designed for precise dispensing of low-viscosity fluids.
- Durable Construction: Diaphragm and needle-type components are made from UPE, ensuring long-lasting performance in demanding environments.
- Entry-Level Solution: Ideal for industries requiring precise fluid control at an affordable price point.
Product specifications
| Model | BV-300N |
| ON/OFF Method | Diaphragm |
| ON/OFF Method | 1~5,000cps |
| Input Air Pressure | 4kgf/cm2 |
| Max. fluid IN-LET pressure | 5kgf/cm2 |
| Max. operation number | 240times/min |
| IN-LET Fittings | PT 1/8” |
| Wet-part material | UPE |
| Valve material | AL 6061 |
| Weight | 76g |
