Main functions and benefits

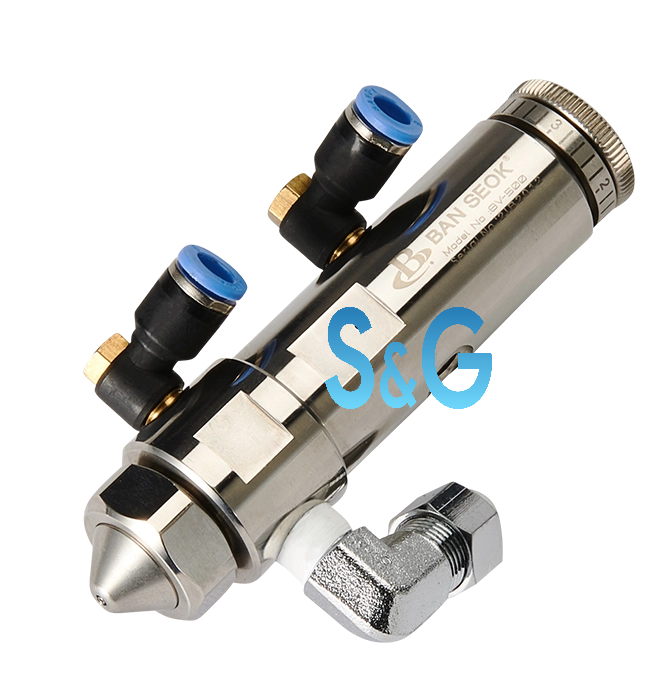

The BV-500 Spray Dispensing Valve is designed for precise spray dispensing applications, with advanced control over spray width to meet exact requirements. This valve allows for adjustable spray width starting from a minimum of 7mm, depending on the dispensing height, making it highly adaptable for applications where consistent, controlled coverage is crucial. The BV-500 is ideal for industries requiring fine-tuned spray patterns, such as electronics, automotive, and medical device manufacturing.
Key Features
- Adjustable Spray Width: Offers precision control with a minimum spray width of 7mm, customizable according to height.
- Precision Dispensing: Ensures accurate, clean application, ideal for tasks requiring exact coating or fluid distribution.
- Versatile for Industrial Use: Suitable for industries needing consistent spray patterns and reliable coverage in critical applications.
Product specifications
| Model | BV-500 |
| ON/OFF Method | Needle Off |
| Applicable viscosity | 1~1,000cps |
| Input Air Pressure | 5kgf/cm2 |
| Max. fluid IN-LET pressure | 10kgf/cm2 |
| Max. operation number | 240times/min |
| IN-LET Fittings | PT 1/8″ |
| Wet-part material | SUS 303 |
| Valve material | SUS 303 |
| Weight | 285g |
| Control | – |
| Stroke Control | – |
