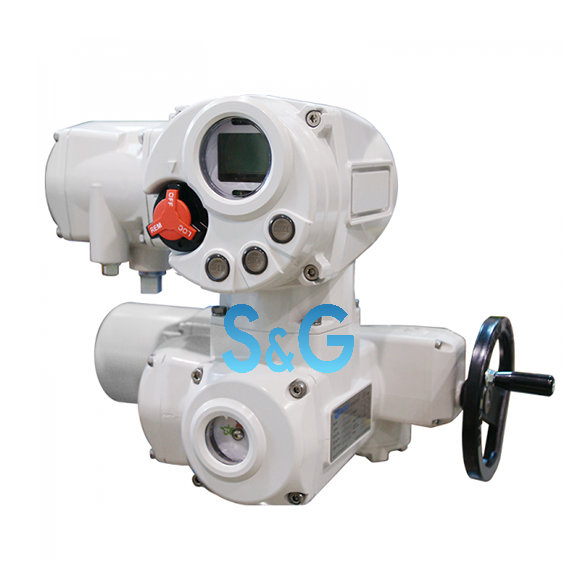

– MS Series are suitable for small multi-turn industrial valves.
– As mechanical limit gearbox controls the position, it enable to memorize the position in power loss.
– Provide information such as the current position and status of the valve through wide LCD window.(Integral Type Only)
– Easy to set and operate by means of remote controller or push button and selector switch.(Integral Type Only)
– IP68 is served as standard.
– ATEX / IECEx Certified. (Ex d IIC T4)
– Motor F class as an standard, H class as an option. / Normal Efficiency IE1 as an standard, High Efficiency as an option.
– Wireless HART, HART, Foundation Field Bus, Profibus, Modbus.
– Self diagnosis function. (Integral Type Only)
– Bluetooth function with mobile phone application to control the actuator is served as an option.
| Enclosure |
Weatherproof IP68, NEMA 6P |
| Ambient Temperature |
Standard : -20℃~+70℃ / Explosion Proof : -20℃ ~+55℃ (Option) / Low Temperature : -40℃ ~ +50℃, -60℃ ~ +50℃ (Option) |
| Power Supply |
3Ph 220 / 230 / 240 / 380 / 400 / 415 / 440 / 460 / 480 VAC 50/60Hz 1Ph 110 / 120 VAC 50 / 60Hz, 1Ph 220 / 230 / 240 VAC 50 / 60Hz |
| Torque Range |
3Ph : 40~70Nm(Without Gearbox) 1Ph : 40Nm |
| Stall Protection |
Built-in Thermal Protection |
| Manual Override |
|
| Handle Type |
Side Hand Wheel |
| Limit Switches |
Open : 1ea / Close : 1ea, Dry Contact Open : 1ea / Close : 1ea |
| Torque Switches |
Open : 1ea / Close : 1ea |
| Duty Cycle |
3Ph : S2-30min / 1Ph S2-15min |
| Base |
ISO5210 (F10) |
| Cable Entries |
1*PF 1″, 2*PF 3/4″ 1*NPT 1″, 2*NPT 3/4″ 1*M32 *Pitch1.5, 1*M25*Pitch1.5 |
| Lubrication |
Shell OMALA S2 G68 |
| External Material |
Aluminum Alloy |
| Surface Treatment |
Anodizing |
| External Coating |
Polyester(TGIC Free) |
| Color |
|
Optional Specification
| EXP |
ATEX, IECEx certified Explosion Proof Type (Ex d IIC T6/T5/T4) -20℃ to 40℃ (T6) -20℃ to 50℃ (T5) -20℃ to 60℃ (T4) |
| Integral Type |
|
| PCU (Proportional Control Unit) |
PCU(Modulating Type) enable to control & monitor the actuator position proportionally. Input : DC 4~20mA, 0~5VDC, 0~10VDC, 1~5VDC, 2~10VDC Output : DC 4~20mA * Actuator for 1Ph needs to apply the Integral Type |
| CPT (Current Position Transmitter) |
CPT enable to monitor the actuator position. Output Signal : DC 4~20mA * Actuator for 1Ph needs to apply the Integral Type |
| Field-Bus(Communication) |
Field-Bus is used when controlling actuator using communication system based on PC. Profi-Bus, Mod-Bus, Foundation Field-Bus, HART, Wireless HART |
