Product details
Drivers:

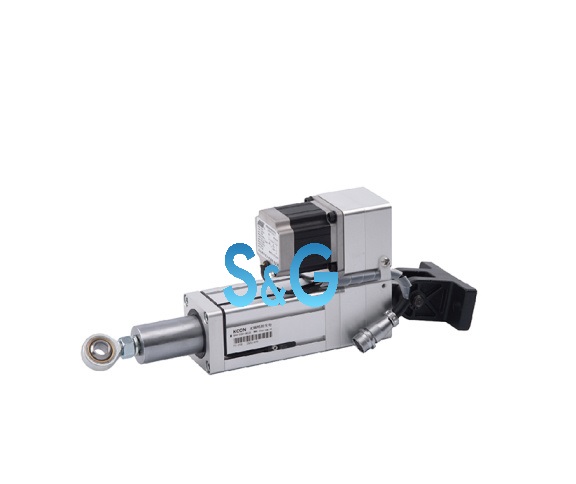

FD series drivers offer a variety of gear ratios to meet the diverse needs of most applications. The driver offers a mobile load range of 500kg to 1000kg (1100 lbs to 3000lbs), a movement speed range of 10mm/s to 20mm/s (0.39″/s to 1.11/s), and a standard drive travel range of 30mm to 100mm (1 to 10), with increments of 30mm (1). Ball screws and ball nuts provide low friction performance and extremely high efficiency. It can be widely used in guiding deviation correction devices and displacement correction devices for unwinding and rewinding.
The FD55/70
+ uses synchronous motor drive, high-power coupling transmission, and a precision ball screw inside, offering high precision, strong thrust, and long service life.
+ Smooth operation and fast response, driving stroke from 30-100mm, suitable for winding and retracting frames and all deviation correction
mechanisms + Equipped with limit positioning and automatic magnetic induction switch, convenient and durable (work stroke can be set arbitrarily).
+ Suitable for unwinding, processing, and rewinding correction; low power consumption, compact size, maintenance-free
Specification table
| Model | Rated Adjustment Stroke (mm) | Rated Adjustment Force (N) |
| FD-55 | ±25 | 500 |
| FD-70 | ±25 | 1000 |
| FD-100 | ±50 | 500 |
Technical specifications
| Rated travel adjustment | See the table |
| Rated adjustment force | See the table |
| Drive speed | 10-20mm/s |
| Correction accuracy | <± 0.2mm (depending on material) |
| Operating voltage | |
| Rated value | 220 V DC |
| Load-bearing capacity is allowed | 500kg-1000kg |
| Ambient temperature | 0 to 100°C |
