Product details

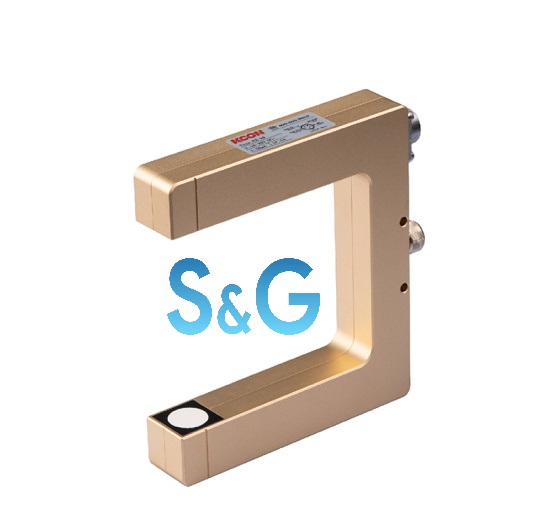

Ultrasonic sensor
+ analog ultrasonic sensor
+ 3.5mm
viewing range + insensitive to dirt caused by dust
+ sensing materials that cannot pass through ultrasound, such as paper, plastic, and metal films, regardless of material transparency
Technical specifications
| Working methods | Ultrasonic modulation transmits and receives transmissive detection, analog output |
| Operating voltage | 12~24VDC |
| Current consumption | 80mADC |
| Ambient temperature | 0-60℃ |
| Measurement range | ±3.5mm |
| Measurement accuracy | ±0.01mm |
| Ultrasonic frequency | ~220KHz |
| Output method | Dual analog 0~5V and TTL levels |
| Cable length | The longest is 10 meters |
| Protection rating | IP54 |
| Weight | 0.6kg |
| Stride | 100mm |
