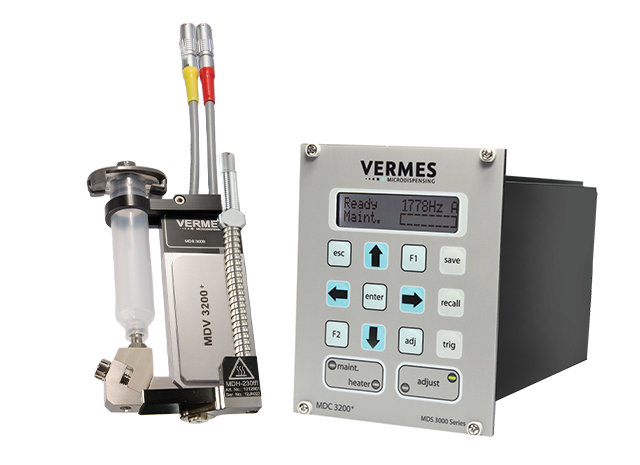

The MDS 3200 series jetting valve, based on advanced piezo technology, ensures repeatable, high-speed dispensing with droplet sizes under 150 μm. This system’s modular design offers flexible integration in tight spaces, low operating costs, and is used in demanding industrial applications.
| Dispensing quantity | Min. 1 nL per pulse (depending on media), & highest dot precision with additional independent pulse time control |
| Dispensing viscosity | Up to 2,000,000 mPas |
| Supply pressure | 0.1 – 8 bar (rel.), max. 100 bar (only when pressure tank is used) |
| Frequency | Up to 3,000 Hz (depending on application and media) |
| Technology | Piezoelectric Technology |
| Ambient temperature | 10 °C – 50 °C |
| Optional heating system | Regulated nozzle heating: 180 °C (possibility of retrofitting of heater with higher temperature control) |
| Standard interface | RS-232C; 24 V / 5 V PLC, AUX |
| Valve type | Bottom Adjust, Normally open |
| Dimensions | Valve MDV 3200+: 115 mm H x 39.5 mm W x 12 mm D Control unit MDC 3200+: 128 mm H x 102 mm W x 173 mm D (without cables), for installation in 19″ racks |
| Weight | Valve: 250 g, Controller: 1350 g |
| Power connection | 110/230 V AC, 50/60 Hz power socket (back side) |
