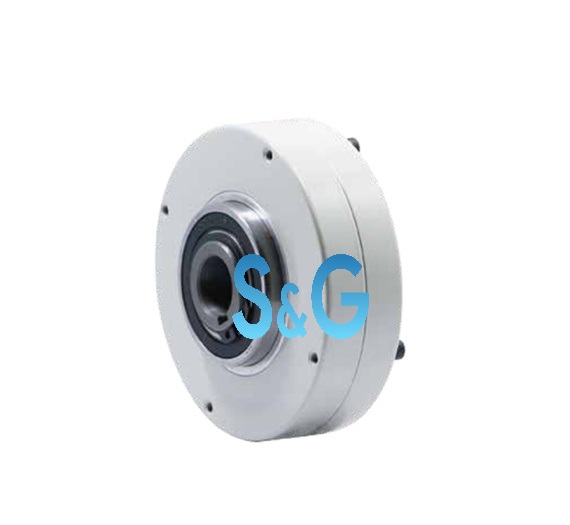

Product details
| Model | 006 | 015 | 025 | 050 | 100 | |
| Rated torque kgf/m (N-m) | 0.6 | 1.2 | 2.5 | 5 | 10 | |
| Inertia moment kg² | 9.0×10-5 | 1.60×10-5 | 2.8×10-4 | 10.0×10-4 | 3.80×10-3 | |
| Capacity (75°C) | Current (A) | 0.4 | 0.5 | 1.1 | 1.35 | 1.31 |
| Electricity (W) | 9.6 | 12 | 26.4 | 32.4 | 31.4 | |
| Time constant (S) | 0.1 | 0.13 | 0.15 | 0.17 | 0.3 | |
| Maximum operating speed (r.p.m) | 600 | 600 | 600 | 600 | 600 | |
| Keyway (b*t) | 6×22.8 | 8×28.3 | 8×28.3 | 8×33.3 | 10×38.3 | |
| Radial direction | A | 105 | 118 | 139 | 182 | 232 |
| B | 55 | 62 | 62 | 80 | 100 | |
| C | 30 | 35 | 35 | 40 | 55 | |
| D | 20 | 25 | 25 | 30 | 35 | |
| D1 | 97 | 110 | 129 | 169 | 216 | |
| P | 4-M4 | 3-M4 | 4-M5 | 4-M6 | 4-M8 | |
| Axial direction | F | 49 | 52 | 60 | 72 | 94 |
| G | 43 | 44 | 52 | 63 | 82 | |
| H | 30 | 30 | 42 | 47 | 62 | |
| Magnetic powder weight (g) | 14 | 17 | 30 | 60 | 100 | |
| Weight (kg) | N/A | 2.24 | 4.4 | 8.4 | 17.6 | |
