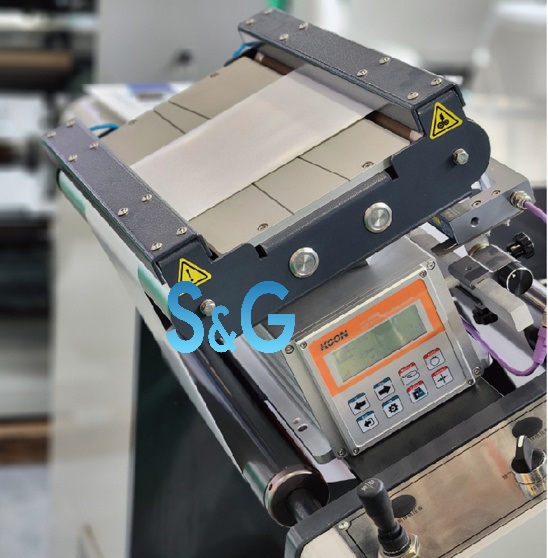

Product details
Installation dimensions
| Model | PGL-S200 | PGL-S250 | PGL-S300 | PGL-S350 | PGL-S400 |
| Roller Length (L) | 200 | 250 | 300 | 350 | 400 |
| Roller diameter (D) | 50 | 50 | 50 | 60 | 60/75 |
| Roller span (B) | 250 | 250 | 250 | 300 | 300 |
| Top Plate Length (L1) | 225 | 275 | 325 | 375 | 425 |
| Base length (L2) | 258 | 258 | 308 | 348 | 398 |
| Height (H) | 217 | 217 | 217 | 227 | 227 |
| Controller spacer frame (A) | 25 | 25 | \ | \ | \ |
| Mounting Hole 4-M8 (X1) | 150 | 150 | 150 | 200 | 250 |
| Mounting hole 4-Φ9 (X2) | 180 | 180 | 180 | 230 | 280 |
| Model | PGL-S450 | PGL-S500 | PGL-S550 | PGL-S600 | PGL-S650 | PGL-S700 |
| Roller Length (L) | 450 | 500 | 550 | 600 | 650 | 700 |
| Roller diameter (D) | 75 | 75 | 75 | 75 | 75 | 75 |
| Roller span (B) | 325 | 325 | 350 | 350 | 350 | 350 |
| Top Plate Length (L1) | 475 | 525 | 575 | 625 | 675 | 725 |
| Base length (L2) | 456 | 506 | 556 | 606 | 656 | 656 |
| Height (H) | 254 | 254 | 254 | 254 | 254 | 254 |
| Mounting hole 4-MM8 (X1) | 300 | 350 | 400 | 450 | 500 | 500 |
| Mounting hole 6-Φ9 (X2) | 330 | 380 | 430 | 480 | 530 | 530 |
