Main functions and benefits
The Banseok Smart PC Pump is an advanced volumetric dispensing pump designed for precise fluid control, boasting an impressive dispensing accuracy with less than 1% error rate. Utilizing a stator and rotor mechanism, this pump offers high-performance fluid management across viscosities up to 100,000 cps. The Smart PC Pump features Motor Pulse Control and Suck Back functionality, ensuring clean, controlled dispensing without residual pressure buildup.
Key Features
- High Precision and Versatile Dispensing: Handles a wide range of viscosities with less than 1% error rate, ideal for precision fluid dispensing in industries such as electronics, adhesives, and pharmaceuticals.
- Motor Pulse Control: Provides consistent, controlled dispensing, enhancing accuracy and repeatability.
- Suck Back Functionality: Prevents dripping, ensuring clean and efficient dispensing.
- Compact and User-Friendly Design: The intuitive, compact structure simplifies disassembly and cleaning, making it a practical choice for high-demand applications.
Detailed View
Product specifications
| Model | BPP-050 | BPP-100 | BPP-500 | BPP-1000 |
| Dispensing Volume(60rpm/sec | ≒0.05ml | ≒0.1ml | ≒0.5ml | ≒1ml |
| Motor Speed | 1~120rpm | 1~120rpm | 1~120rpm | 1~120rpm |
| Accuracy | ±1% | ±1% | ±1% | ±1% |
| Input Air Pressure | 0~6kgf/cm² | 0~6kgf/cm² | 0~6kgf/cm² | 0~6kgf/cm² |
| Material of Stator | FFKM | FFKM | FFKM | FFKM |
| Material of Motor | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Inlet Port | G 1/4″(STD) | G 1/4″(STD) | G 1/4″(STD) | G 1/4″(STD) |
| Outlet Port | Luer Lock | Luer Lock | Luer Lock | Luer Lock |
| Wetting Part Material | SUS / UHMW-PE | SUS / UHMW-PE | SUS / UHMW-PE | SUS / UHMW-PE |
| Weight | 540g | 1.6kg | 540g | 1.6kg |
| Operating Condition | 10~40°C | 10~40°C | 10~40°C | 10~40°C |

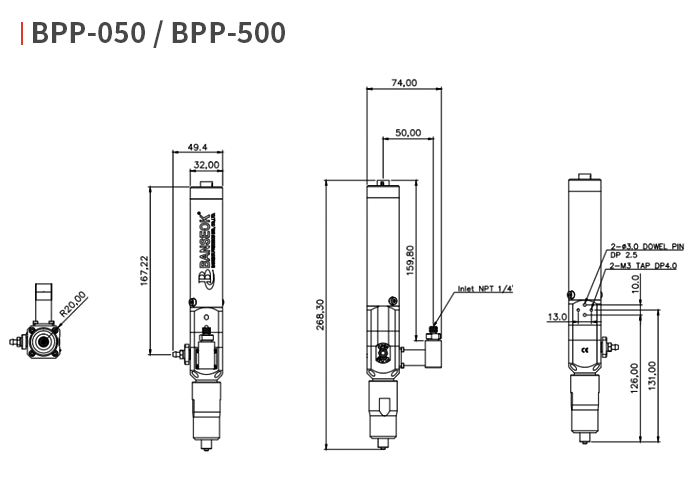

Product Drawing BPP-050/ BPP-500
Product Drawing BPP-100/ BPP-1000
