Pulse dust collector
dust collector
KR Series
The KR series is a cartridge filter-type dust collector that can be widely customized according to the application and installation environment. With inverter airflow adjustment and automatic dust removal during operation, stable suction performance and ease of maintenance are achieved. By combining a wide range of options such as filter specifications, exhaust systems, cyclone predusters, HEPA filters, and various sensors, you can build a machine optimized for the type and amount of dust and operating conditions. This is a highly versatile series that allows flexible customization to suit your needs.
Product Information
INFORMATION
-
- Model
- KRA(U) / KRB(U) / KRC(U) Series
-
- Motor output (kW)
- 0.4 ～ 3.7
-
- Power Supply Usage
- Three-phase 200 ~ 480V 50/60Hz *Single-phase 100/200V also available
-
- Maximum Airflow (m³/min)
- 3.7 ～ 22.3
-
- Maximum static pressure (kpa)
- -2.6 ～ -30.0
-
- How to Refund
- Pulse jet type
-
- Dimensions (mm)
- D572 × W596 × H1240 ～ D722 × W681 × H1576
-
- Weight (kg)
-
- Intended Use
- Machinery & Metal Processing / Pharmaceuticals / Food / Semiconductors

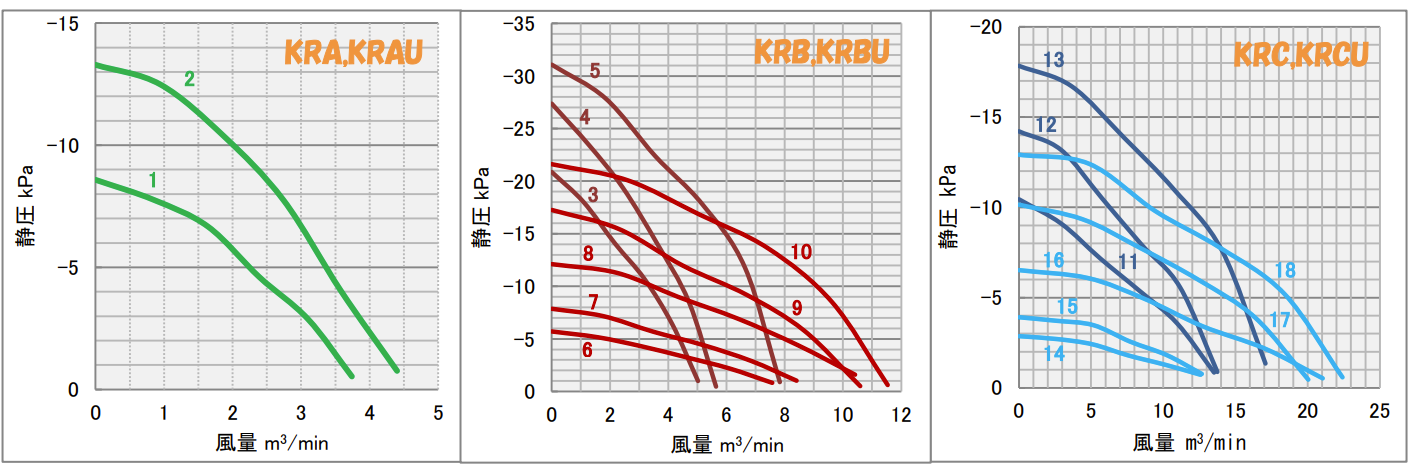

performance curve
GRAPH
*The performance values listed are for reference only and not guaranteed.
Specifications and performance may change without notice due to component composition or improvements.
For more details, please contact our company.
