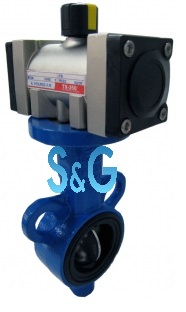

| TX350-BF butterfly valve |
|
|
|
空氣壓操作式 BUTTERFLY VALVE,
Air Operating BUTTERFLY Valve(WAFER)
– ISO 규격 TYPE
– 出力 Torque의 安定과 高速動作에 適合한 Rack & Pinion 方式
Actuator
– 다이렉트 체결방식
– 분체사용에 적합함
– 인디케이트 부착으로 OPEN,CLOSE식별용이. |
|
|
|
|
 |
|
|
|
|
|
|
| No. |
Name of Parts |
Material |
| 1 |
Actuator |
조립품 |
| 2 |
PACKING |
PTFE |
| 3 |
STEM |
SUS304 |
| 4 |
VALVE BODY |
CAST IRON(FC) |
| 5 |
SEAT |
EPDM |
| 6 |
DISK BOLT |
SUS304 |
| 7 |
DISK |
SCS13 |
| Item |
Description |
| 유체 |
Fluid |
물 |
|
기름 |
|
스팀 |
| Water |
|
Oil |
|
Steam |
| 유체온도 |
Fluid Temperature |
(부동)0～80℃ / 0～180℃ |
| 조작압력 |
Operating press. |
4～7Kg/㎠ |
| Option 4DA ACTUATOR는인발제품임. |
Solenoid Valve AC110V, AC220V, DC24V
Speed control
Limit Switch
Filter Regulator the other |
| Model |
Connection |
Max. pressure
(Kg/㎠) |
| Size(in) |
Type |
| TX350-1DA-40BF |
TX350-1DSSR-40BF |
1 1/2 |
WAFER
KS10K
RF |
10 |
| TX350-1DA-50BF |
TX350-1DSSR-50BF |
2 |
10 |
| TX350-2DA-65BF |
TX350-2DSSR-65BF |
2 1/2 |
10 |
| TX350-2DA-80BF |
TX350-3DSSR-80BF |
3 |
10 |
| TX350-2DA-100BF |
TX350-3DSSR-100BF |
4 |
10 |
| TX350-3DA-125BF |
– |
5 |
10 |
| TX350-3DA-150BF |
– |
6 |
10 |
| TX350-4DA-200BF |
– |
8 |
10 |
| TX350-4DA-250BF |
– |
10 |
10 |
|
| Model |
Dimension(mm) |
Weight
DA(Kg) |
| Φd |
A |
DR |
B |
C |
| TX350-1DA-40BF |
TX350-1DSSR-40BF |
36 |
138 |
203 |
66 |
72 |
DA 2.74 |
| TX350-1DA-50BF |
TX350-1DSSR-50BF |
52 |
138 |
203 |
66 |
72 |
DA 3.52 |
| TX350-2DA-65BF |
TX350-2DSSR-65BF |
64 |
187 |
251 |
79.5 |
90 |
DA 4.59 |
| TX350-2DA-80BF |
TX350-3DSSR-80BF |
78 |
187 |
427 |
79.5/105 |
90/106 |
DA 5.28 |
| TX350-2DA-100BF |
TX350-3DSSR-100BF |
101 |
187 |
427 |
79.5/105 |
90/106 |
DA 6.36 |
| TX350-3DA-125BF |
– |
125 |
265 |
– |
105 |
106 |
DA 9.5 |
| TX350-3DA-150BF |
– |
148 |
265 |
– |
105 |
106 |
DA 10.9 |
| TX350-4DA-200BF |
– |
198 |
290 |
– |
124 |
120 |
DA 19.47 |
| TX350-4DA-250BF |
– |
248 |
290 |
– |
124 |
120 |
DA 26.44 |
| Model |
Dimension(mm) |
DSSR(Kg) |
| W |
H1 |
H |
PCD-n-ΦH |
| DA |
DSSR |
DA |
DSSR |
DA |
DSSR |
| TX350-1DA-40BF |
TX350-1DSSR-40BF |
40 |
57 |
206 |
105-2-15 |
3.1 |
| TX350-1DA-50BF |
TX350-1DSSR-50BF |
43 |
70 |
216 |
120-2-19 |
3.74 |
| TX350-2DA-65BF |
TX350-2DSSR-65BF |
46 |
75 |
235 |
140-2-19 |
5.78 |
| TX350-2DA-80BF |
TX350-3DSSR-80BF |
46 |
– |
90 |
– |
250 |
275 |
150-2-19 |
9.37 |
| TX350-2DA-100BF |
TX350-3DSSR-100BF |
52 |
– |
105 |
– |
270 |
295 |
175-2-19 |
10 |
| TX350-3DA-125BF |
– |
56 |
– |
120 |
– |
310 |
– |
210-2-23 |
|
| TX350-3DA-150BF |
– |
52 |
– |
135 |
– |
325 |
– |
240-2-23 |
|
| TX350-4DA-200BF |
– |
60 |
– |
168 |
– |
374 |
– |
290-4-23 |
|
| TX350-4DA-250BF |
– |
68 |
– |
203 |
– |
414 |
– |
355-4-25 |
|
|
|
