Voltage size: 6W, 60mmx60mm
With brakes/voltage used: 1ph 110-1ph 230V
Capacitance: 1-4uf
The speed is based on the asynchronous speed of the motor (50Hz: 1200r/min, 60Hz: 1450r/min)

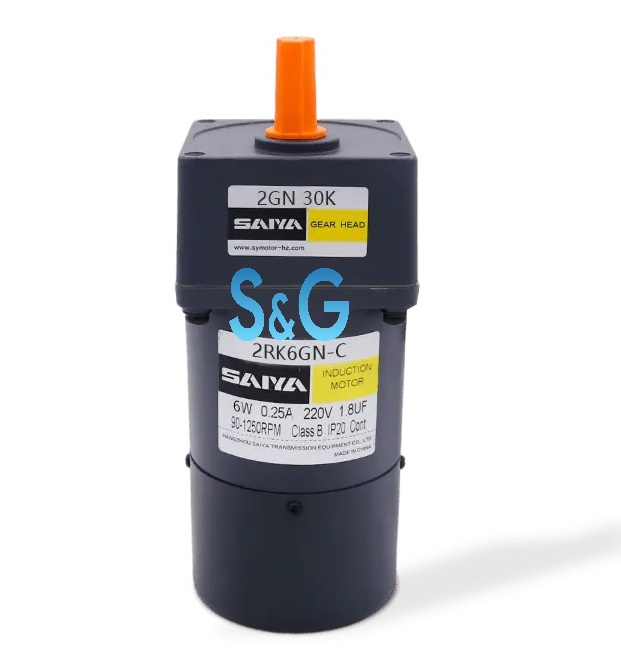

6W reversible AC gear motors are compact yet powerful devices, ideal for applications requiring precise speed and torque control. With a frame size of 60mm x 60mm, these motors are designed to fit into tight spaces without compromising on performance. They come equipped with a braking system to ensure quick and accurate stopping, enhancing safety and control in various applications.
The motors are versatile in terms of power supply, operating on a single-phase voltage of either 110V or 230V. This flexibility makes them suitable for use in different regions and under varying electrical conditions. Additionally, they require a capacitor with a capacity ranging from 1 to 4 microfarads (μF) to start and run efficiently.
These motors operate at asynchronous speeds, which vary depending on the frequency of the electrical supply::1200rmp for 50Hz and 1450 for 60HZ. This difference in speed allows the motors to be used in a wide range of applications, providing consistent performance across different environments and requirements.
6W reversible AC gear motors are reliable, efficient, and adaptable, making them an choice for precision-driven tasks in various industrial and commercial settings.
Specs Continuous Rating
| Model·Type
Lead Wire Type |
Output
power W |
Voltage
V |
Frequency
Hz |
Current
A |
Starting
Torque mN.m |
Rated
Torgue mN,m |
Rated
Speed r/min |
Capacitor
μF |
|
| Pinion Shaft | Round Shaft | ||||||||
| 2IK6GN-A | 2IK6A-A | 6 | 1ph 100 | 50 | 0.240 | 55 | 48 | 1200 | 3.5 |
| 60 | 0.250 | 50 | 40 | 1450 | |||||
| 2IK6GN-E | 2IK6A-E | 6 | 1ph 110 | 60 | 0.160 | 40 | 40 | 1450 | 2.0 |
| 1ph 120 | 0.180 | ||||||||
| 2IK6GN-C | 2IK6A-C | 6 | 1ph 220 | 50 | 0.130 | 50 | 48 | 1200 | 0.8 |
| 1ph 230 | 0.140 | 40 | 1450 | ||||||
| 2IK6GN-H | 2IK6A-H | 6 | 1ph 220 | 60 | 0.130 | 55 | 40 | 1450 | 0.8 |
| 1ph 230 | 0.140 | ||||||||
| 2IK6GN-S | 2IK6A-S | 6 | 3ph 220 | 50 | 0.076 | 85 | 48 | 1200 | |
| 60 | 0.065 | 70 | 40 | 1450 | |||||
| 2IK6GN-S3 | 2IK6A-S3 | 6 | 3ph 380 | 50 | 0.044 | 85 | 48 | 1200 | |
| 60 | 0.038 | 70 | 40 | 1450 | |||||
When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
Note:”-A”it means the voltage 110V,the assembly capacitor vaule it is according the labe.
Type
Motor
| Type | Model | |
| Pinion Shaft | Round Shaft | |
| Lead
Wire Type |
2IK6GN-A | 2IK6A-A |
| 2IK6GN-E | 2IK6A-E | |
| 2IK6GN-C | 2IK6A-C | |
| 2IK6GN-H | 2IK6A-H | |
| 2IK6GN-S | 2IK6A-S | |
| 2IK6GN-S3 | 2IK6A-S3 | |
Parallel Shaft Gearhead (Sold Separately)
| Gearhead Type | Gearhead Model | Gear Ratio |
|
Long Life ·Low Noise |
2GN□K |
3、3.6、5、6、7.5、9、10、
12.5、15、18、20、25、30、 36、40、50、60、75、90、 100、120、150、180、200 |
| 2GN10XK(Decimal Gearhead ) | ||
Enter the gear ratio in the box (□)within the model name
Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
Decimal Gearhead
Can be connected to GN pinion shaft type
Weight:0.2kg
Formal Dimension Of Capacitor
| Model |
Capacitor Model |
L |
W |
H |
|
| Pinion Shaft | Round Shaft | ||||
| 2IK6GN-A | 2IK6A-A | ZD35CFAUL | 38 | 19.5 | 31 |
| 2IK6GN-E | 2IK6A-E | ZD20CFAUL | 36 | 15.0 | 25 |
| 2IK6GN-C | 2IK6A-C | ZD08CFAUL | 36 | 10.5 | 20 |
Note: Conventional capacitor is a lead wire type.Inserted 187#is optional
Wiring Diagram
The direction of motor rotation is as viewed from the shaft end of the motor.CW represents the clockwise direction, while CCW represents the counterclockwise direction.
The Name indicated in the list is the pinion shaft type, also valid for the equivalent round shaft type.
| 2IK6GN-A、2IK6GN-E、2IK6GN-C、2IK6GN-H | 2IK6GN-S(S3) | ||
| Clockwise(CW)
|
Anti-clockwise(CCW)
|
Clockwise(CW)
|
|
Note:
Change the direction of single-phase motor rotation only after bringing the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating, the motor may ignore the reversing command or change its direction of rotation after some delay.
Gear Motor-Torque Table
Gearhead and mid-gearbox can be sold separately.
Enter the gear ratio in the box (□)within the model name.
The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.
The speed is calculated by dividing the motor’s synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.
To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead (gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N-m.
Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)
| Type
Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 |
7.5 |
9 | 10 |
12.5 |
15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| Speed r/min | 50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 |
12.5 |
10 | 8.3 | 7.5 | |
| 60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 |
2GN□K |
50Hz |
0.12 |
0.14 |
0.19 |
0.23 |
0.29 |
0.35 |
0.39 |
0.49 |
0.58 |
0.70 |
0.75 |
0.88 |
1.10 |
1.30 |
1.39 |
1.60 |
1.90 |
2.40 |
2.90 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
|
1.22 |
1.43 |
1.94 |
2.35 |
2.96 |
3.57 |
3.98 |
5.00 |
5.92 |
7.14 |
7.65 |
8.98 |
11.2 |
13.3 |
14.2 |
16.3 |
19.4 |
24.5 |
29.6 |
30.0 |
30.0 |
30.0 |
30.0 |
30.0 |
|||
| 60Hz |
0.10 |
0.12 |
0.16 |
0.19 |
0.24 |
0.29 |
0.32 |
0.4 |
0.49 |
0.58 |
0.62 |
0.73 |
0.88 |
1.10 |
1.15 |
1.30 |
1.60 |
2.00 |
2.40 |
2.60 |
3.00 |
3.00 |
3.00 |
3.00 |
||
|
1.02 |
1.22 |
1.63 |
1.94 |
2.45 |
2.96 |
3.26 |
4.18 |
5.00 |
5.92 |
6.32 |
7.45 |
8.98 |
11.2 |
11.7 |
13.3 |
6.3 |
20.4 |
24.5 |
26.5 |
30.0 |
30.0 |
30.0 |
30.0 |
|||
To Allow The Hoisting Of The Load Alow Axial Load
|
Motor (Round shaft)→P215 |
| Gearhead→P215 |
J Permissible Load Inertia J For Gearhead
→215 page→P215
Dimensions (Unit mm)
Mounting screws are included with the gearhead.
Lead Wiring Type
Weight: Motor:0.75kg / Gearhead:0.4kg
| Motor Model | Gearhead Model | Gear Ratio | L1 |
| 2IK6GN-A
2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 |
2GN□K | 3~200 | 41.5 |
