Voltage size: 24V, 60mmx60mm -104mmx104mm
Rated power: 25-400W
Rated speed: 3000rpm
Rated current: 1.0-2.0A
Torque: 0.08N.M

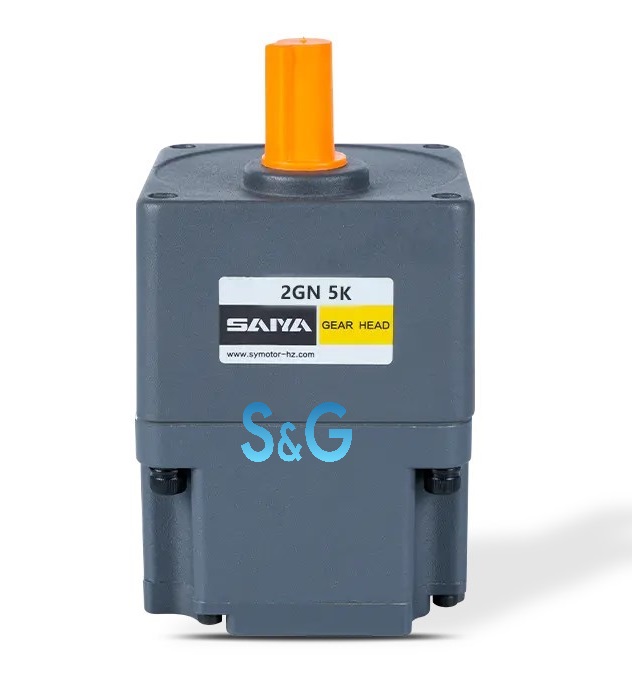

The 24V Brushless Gear Motor is a versatile and efficient motor designed for a range of applications. With dimensions ranging from 60mm x 60mm to 104mm x 104mm, this motor can fit into various equipment sizes. It boasts a rated power output between 25W to 400W, making it suitable for both light and heavy-duty tasks. The motor operates at a consistent rated speed of 3000 RPM, ensuring smooth and reliable performance. It features a rated current of 1.0 to 2.0A, which indicates its efficiency and energy-saving capabilities.
One of the key specifications of this motor is its torque, rated at 0.08 N.M, which provides adequate force for driving mechanical systems. The brushless design enhances durability and reduces maintenance needs, as there are no brushes that wear out over time. This also contributes to quieter operation and higher efficiency compared to brushed motors.
The 24V Brushless Gear Motor is ideal for use in automation systems, robotics, electric vehicles, and other industrial applications where precise control and long-term reliability are essential. Its compact size, combined with robust performance characteristics, makes it a preferred choice for engineers and designers seeking high-quality motor solutions.
Low Voltage Motor Parameters
| Model | Voltage V |
No-load current A |
No-load Speed RPM |
Rated Power W |
Rated Current A |
Rated Speed RPM |
Rated Torque N.m |
Grade Protection IP |
|||||||||
| S2BLD25-24□ | 24 | 0.60 | 3900 | 25 | 2.0 | 3000 | 0.08 | 20 | |||||||||
| S2BLD25-36□ | 36 | 0.45 | 3600 | 25 | 1.5 | 3000 | 0.08 | 20 | |||||||||
| S2BLD25-48□ | 48 | 0.30 | 3400 | 25 | 1.0 | 3000 | 0.08 | 20 | |||||||||
Type
Low Voltage Motor
| Type | Model | |||||
| Pinion Shaft | Round Shaft | |||||
| Lead Wire Type | S2BLD25-24GN | S2BLD25-24A | ||||
| S2BLD25-36GN | S2BLD25-36A | |||||
| S2BLD25-48GN | S2BLD25-48A | |||||
Parallel Shaft Gearhead (Sold Separately)
| Gearhead Type | Gearhead Model | Gear Ratio | ||||||
| Long Life●Low Noise | 2GN□K | 3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、50、60、75、90、 100、120、150、180、200 |
||||||
| 2GN10XK(Decimal Gearhead) | ||||||||
Enter the gear ratio in the box within the model name.
Gear Motor-torque Table
Gearhead and mid-gearbox can be sold separately.
Enter the gear ratio in the box()within the model name.
The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.
The speed is calculated by dividing the motor’s synchronous speed by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.
To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N·m.
Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |||||||
| Output shaft speed | 1000 | 830 | 600 | 500 | 400 | 330 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | 15 | |||||||
| Allowance Torque | 0.19 | 0.23 | 0.32 | 0.38 | 0.48 | 0.58 | 0.81 | 0.97 | 1.16 | 1.44 | 1.73 | 2.07 | 2.52 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | |||||||
Dimensions(Unit mm)
Mounting screws are included with the gearhead.
Lead Wiring Type
Weight: Motor:0.5kg / Gearhead: 0.48kg
| Motor Model | Gearhead Model | Gear Ratio | Dimension | |||||||||||
| Z2BLD25-□GN | 2GN□K | 3~18 | 32 | |||||||||||
| 25~200 | 41 | |||||||||||||
Enter the gear ratio in the box(□)within the model name
Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
Decimal Gearhead
It can be connected to the GN pinion shaft type. 2GN10XK / Weight:0.2kg
Wrie Plug hole Corresponding Signal Explanation
| Plug Hole | 1 | 2 | 3 | 4 | ||||||
| Signal | U | W | Hz | Hu | ||||||
| Plug Hole | 5 | 6 | 7 | 8 | ||||||
| Signal | V | GND | Hw | Vcc | ||||||
60 Pressure L Type Reducer
Dimensions(Unit mm)
Mounting screws are included with the gearhead.
Lead Wiring Type
Weight:Motor:0.9kg / Gearhead: 0.48kg
Key· Keyway (The Key is Included With The Gearhead)
Wrie Plug hole Corresponding Signal Explanation
| Plug Hole | 1 | 2 | 3 | 4 | ||||||
| Signal | U | W | Hz | Hu | ||||||
| Plug Hole | 5 | 6 | 7 | 8 | ||||||
| Signal | V | GND | Hw | Vcc | ||||||
