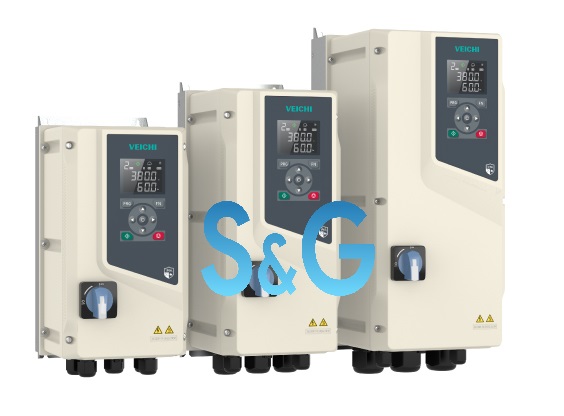

AC600F Series High Ingress Protection Universal AC Drive |VEICHI

Main Control Performance
Motor type	3PH asynchronous motor, permanent magnet synchronous motor, and synchronous reluctance motor
Control mode	V/F, SVC, FVC, and VF split control
Modulation	PWM
Speed control range	SVC: Rated load 1: 200 FVC: Rated load 1: 1000
Speed stabilizing accuracy	SVC: ± 0.5% (3PH AM), ±0.1% (PMSM) FVC: ±0.02%
Starting torque	SVC: 150% of rated torque at 0.25Hz FVC: 200% of rated torque at 0Hz
Torque response	SVC: <10ms ; FVC: <5ms
Torque accuracy	SVC: ±5% ; FVC: ±2.5%
Frequency accuracy	DI: Max. frequency × (±0.01%) ; AI: Max. frequency × (±0.2 %)
Frequency resolution	DI: 0.01Hz ; AI: Max. frequency × ±0.05 %
