Compact High-Pressure Dust Collector
dust collector
CSA Series
The CSA Series is a compact, high-pressure commercial dust collector equipped with a high-performance turboblower in a compact body. Cartridge filters with a filter area of 1.5㎡ or more thoroughly collect fine dust, and manual discharge ensures excellent maintenance. In the inverter-controlled model, airflow can be adjusted via dial operation. Furthermore, even if the filter becomes clogged, constant current control automatically increases the operating frequency, suppressing suction loss without operator intervention.
Product Information
INFORMATION
-
- Model
- CSA-N5 / 10 / 20 Series
-
- Motor output (kW)
- 0.4 / 0.75
-
- Power Supply Usage
- Three-phase 200V 50/60Hz *Three-phase 400 / single-phase 100 / 200V also available
-
- Maximum Airflow (m³/min)
- 3.5 / 6.5 / 10.0
-
- Maximum static pressure (kpa)
- -13.8 ～ -4.7
-
- How to Refund
- manual type
-
- Dimensions (mm)
- D400 × W450 × H780
-
- Weight (kg)
- 52 ～ 73
-
- Intended Use
- Machining / Metalworking

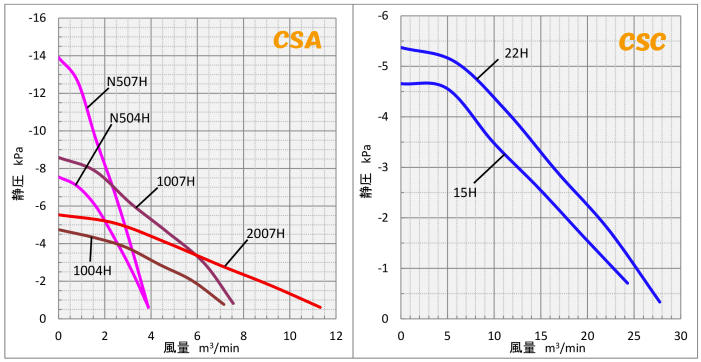

performance curve
GRAPH
*The performance values listed are for reference only and not guaranteed.
Specifications and performance may change without notice due to component composition or improvements.
For more details, please contact our company.
