FAs Series PLC SAMKOON

Posted on by admin
24
Th5

FAs Series PLC

Here’s the information organized in a table format:

Product Name Dimensions Digital Input Analog Input High-Speed Counting Digital Output Analog Output Output Type Pulse Output

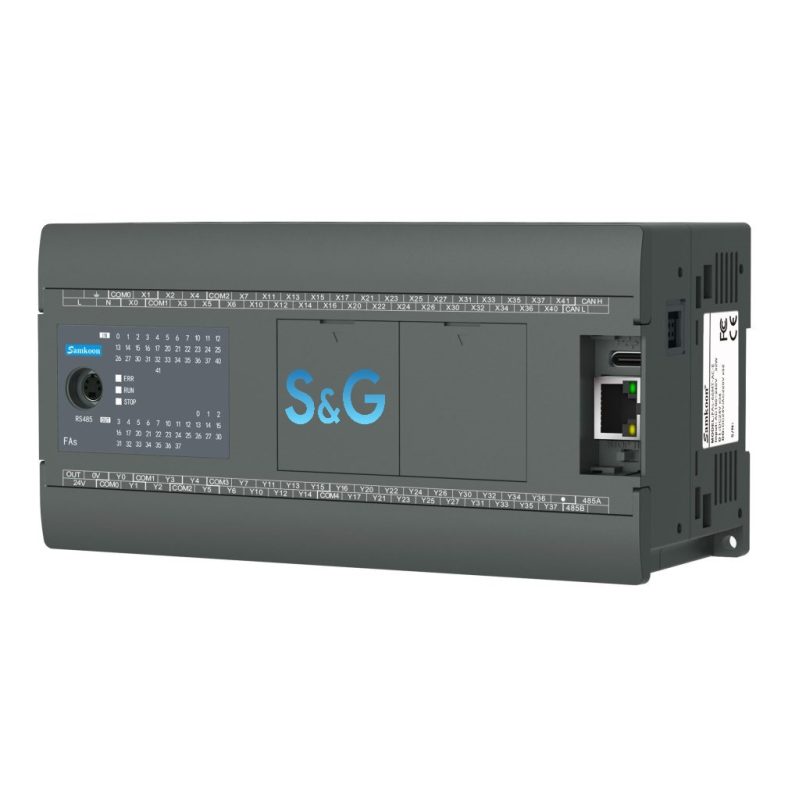

FAs-66MT-AC-E 194x97x81 (mm) 34 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 32 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
FAs-66MT-AC-N 194x97x81 (mm) 34 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 32 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
FAs-66MR-AC-E 194x97x81 (mm) 34 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 32 Expandable through plugins Relay None
FAs-66MR-AC-N 194x97x81 (mm) 34 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 32 Expandable through plugins Relay None
FAs-50MT-AC-E 163x97x81 (mm) 26 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 24 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
FAs-50MT-AC-N 163x97x81 (mm) 26 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 24 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
FAs-50MR-AC-E 163x97x81 (mm) 26 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 24 Expandable through plugins Relay None
FAs-50MR-AC-N 163x97x81 (mm) 26 Expandable through plugins 4 channels single-phase (X0, X2, X4, X6) at 200KHz 24 Expandable through plugins Relay None
FAs-32MT-AC-E 125x97x81 (mm) 16 Expandable through plugins 2 channels single-phase (X0, X2) at 200kHz; 2 channels single-phase (X1, X3) at 20kHz 16 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
FAs-32MT-AC-N 125x97x81 (mm) 16 Expandable through plugins 2 channels single-phase (X0, X2) at 200kHz; 2 channels single-phase (X1, X3) at 20kHz 16 Expandable through plugins Transistor/NPN 4 channels, each up to 200KHz
Product Name Dimensions Digital Input Analog Input High-Speed Counting Digital Output Analog Output Output Type Pulse Output
FAs-32MR-AC-E 125x97x81 (mm) 16 Expandable through plugins 2 channels single-phase (X0, X2) at 200kHz; 2 channels single-phase (X1, X3) at 20kHz 16 Expandable through plugins Relay None
FAs-32MR-AC-N 125x97x81 (mm) 16 Expandable through plugins 2 channels single-phase (X0, X2) at 200kHz; 2 channels single-phase (X1, X3) at 20kHz 16 Expandable through plugins Relay None
FAs-40HT-AC 125x97x81 (mm) 22 None 2 channels single-phase (X0, X2) at 100kHz; 2 channels single-phase (X1, X3) at 20kHz 18 None Transistor/NPN 4 channels, each up to 100KHz
FAs-22HT-AC 86x97x81 (mm) 12 None 2 channels single-phase (X0, X2) at 100kHz; 2 channels single-phase (X1, X3) at 20kHz 10 None Transistor/NPN 4 channels, each up to 100KHz
FAs-16MT-AC 70.5x97x81 (mm) 8 None 2 channels single-phase (X0, X1) at 200kHz 8 None Transistor/NPN 2 channels, each up to 200KHz
FAs-16HT-AC 86x97x81 (mm) 8 None 2 channels single-phase (X0, X1) at 200kHz 8 None Transistor/NPN 2 channels, each up to 200KHz
FAs-20MT-AC 86x97x81 (mm) 12 None 2 channels, each up to 200KHz 8 None Transistor/NPN 2 channels, each up to 200KHz
FAs-20MR-AC 86x97x81 (mm) 12 None 2 channels, each up to 200KHz 8 None Relay None
FAs-40MR-AC 124.8x97x81 (mm) 22 None 2 channels, each up to 200KHz 18 None Relay None
FAs-40MT-AC 124.8x97x81 (mm) 22 None 2 channels, each up to 200KHz 18 None Transistor/NPN 2 channels, each up to 200KHz

Powerful Hardware and Software Configuration

  1. Robust Hardware Configuration:
    • Built on a 32-bit microcontroller with Arm® Cortex®-M4 core.
    • Operating at a main frequency of 200MHz, the hardware is enhanced for resistance to interference, ensuring stability in the face of power fluctuations and guaranteeing continuous and efficient operation.
    • The compiled low-level software ensures extremely short scan cycles, with execution speeds exceeding 10 times that of interpretable PLCs with similar configurations.
  2. Versatile Communication Interfaces:
    • Equipped with 1 Ethernet interface supporting Modbus TCP/IP protocol.
    • Features 2 RS485 communication ports supporting Modbus RTU and custom communication protocols.
    • Includes 1 high-speed USB download port, allowing PLC monitoring and downloading from any communication interface.
  3. Flexible and Comprehensive Performance:
    • The Ethernet host supports 4 high-speed pulse outputs and 8 high-speed count inputs, providing robust motion control capabilities.
    • Powerful instruction set.
    • Incorporates a right expansion module based on CAN communication, with a communication speed of up to 1Mbps and the ability to expand up to 64 extension modules.
    • Extension modules can operate as independent control units running programs.
    • Supports 2 front-facing small plug-in extension modules, enabling flexible combinations of digital IO modules, analog modules, and temperature modules with plug-and-play capability.
  4. Upgraded Upper-Level Software – SamSoar2022:
    • Compilation speed less than 0.5 seconds, download speed less than 3 seconds, and allows online program editing.
    • SamSoar2022 supports programming through instruction tables, function block diagrams, and SFC step ladder diagrams. The user interface is highly customizable and includes a rich set of PLC instructions. Function blocks can be written in C language.
    • The software adopts a compiled architecture to ensure resistance to decompilation and program cracking.
    • Offers compatibility with competitors’ programs, allowing direct conversion of ladder diagrams from the same category into visible control ladder diagrams.
    • PLC programs can be downloaded through a visible control screen.
