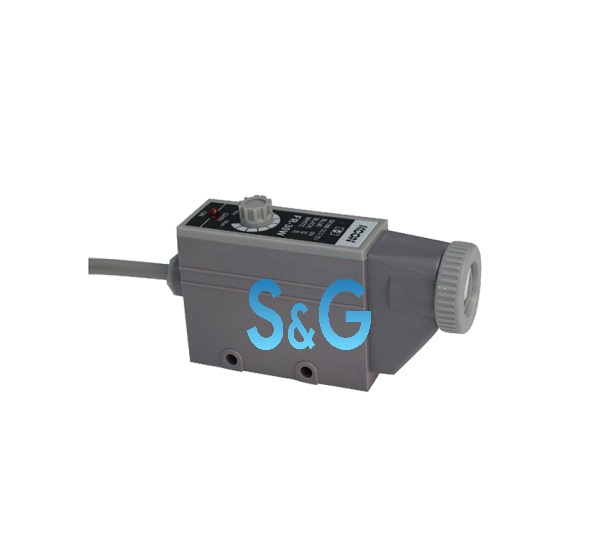

Color mark sensor
+ German technology design
+ high response frequency
+ full output protection
+ multiple light source options
Product features
The +FR series logo detection photoelectric switch scans the surface of the paper being inspected by its own light source. The amount of reflected light varies due to differences in surface color, enabling the identification of color markings.
+ Coaxial optical path design, better adaptability to high reflectivity paper surfaces (such as aluminum foil). It offers multiple light sources including white, blue, green, and red, making it easy to distinguish different colors.
+ Fine light spots with extremely high resolution. High response speed of 0.1~1ms, suitable for various packaging machines, bag-making machines, and printing machinery control needs.
+ Excellent internal circuit design, excellent resistance to various electromagnetic and stray light interference performance, stable operation, and no erroneous operation. Features sensitive twist adjustment, allowing adjustment without tools.
Technical specifications
| Detection methods | Coaxial reflective type |
| Detection distance | 10mm±2mm |
| Supply voltage | DC10-30V ±10% Corrugated <10% |
| Light source chromatography | Red, green, blue, white |
| Detection angle | The light is perpendicular to the surface of the object being measured, with an allowable deviation of ±15° |
| Output voltage | High level (≤1.5) Low level (≤1.2V) |
| Carrying current | 200mA(max) |
| Resistant to ambient light | Self-igniting lamp< 3000Lx solar 10000Lx |
| Protection rating | LP67 (moisture-proof, dustproof) |
| Environmentally friendly temperature | Operate at -15°C to 65°C, store at -25°C to 80°C |
| Shell material | Engineering plastics |
| Weight | 300g |
