Product details

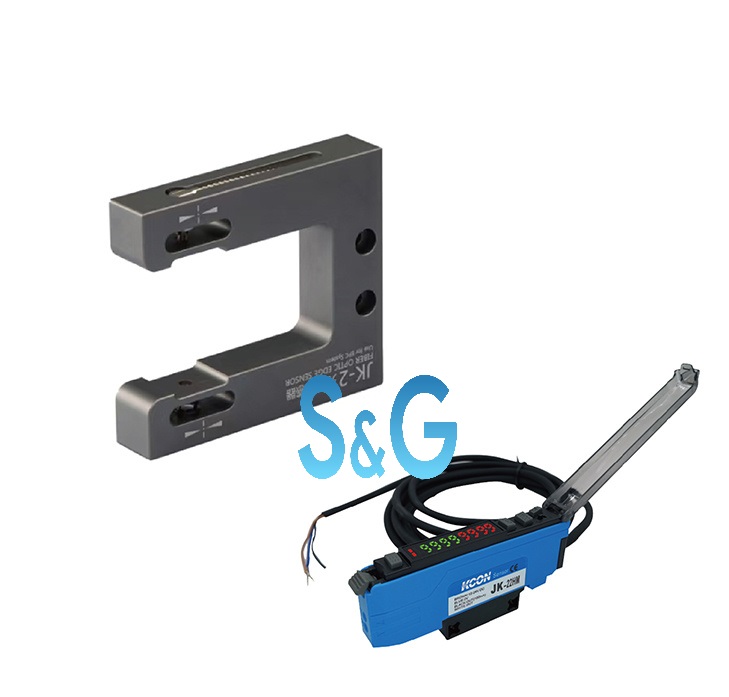

Fiber optic sensor
+ excellent stability
+ fast response
speed + anti-interference + short-circuit protection
+ electrode reverse connection protection
+ non-contact detection
+ application temperature up to 350°C
Technical specifications
| Operating voltage | 8~30V DC |
| Saturation voltage | 25mA<1.2V,100mA<2V |
| Load current | <50mA |
| Output current | <200mA |
| Output mode | NPN/PNP collector open circuit |
| Switch mode | L.on (light input action) / D.on (light blocking action) can be set |
| Display screen | 7-section 8-digit digital display (Red: 4 digits, Green: 4 digits) |
| Operating temperature | -10℃~+60℃ |
| Operating humidity | 35~85%RH |
| Ambient illumination | Sunlight exposure ≤ 10,000 Lux |
| Impact resistance | 10G (1500m/s²), XYZ in three directions |
| Vibration-resistant | 10~55Hz dual amplitude 1.5mm, XYZ direction, 2 hours each |
| Qualification Method | 2m 4-core cable |
| Weight | 65g |
