Color Scale Sensor

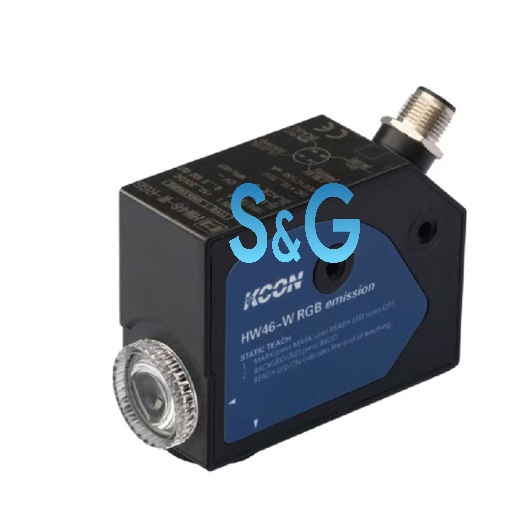

: The HW46 color mark sensor series features RGB LED light sources, fast response times, and high switching frequency, resulting in outstanding resolution performance. Using standard installation methods, carefully designed sensors are encapsulated within a sturdy metal housing; Available in three different product types. The basic HW46-W model has only one setup button and two LED indicator lights; The standard HW46-WL model features 3 buttons and 4 LED indicators, and also provides bar charts for manual threshold setting; The HW46-WLF Enhanced model offers a 4-digit display for setting various advanced functions, such as dynamic setting marks. The 30kHz switching frequency is the highest parameter among similar products currently on the market.
Product Features
+ RGB Transmission: High detection reliability and resolution
+ Teach buttons and bar chart or 4-digit digital display: easy and fast setup
+ 30KHz switching frequency: accurate and repeatable
reading + The rotatable M125-core connector can be matched with the technical specifications of mechanical components
in equipment
| Operating voltage | 10~30VDC |
| Power consumption | 85mA |
| Output signal | 1 NPN/PNP channel available (factory set to PNP output) |
| Output current | 30VDC maximum (short circuit protection), maximum 100mA |
| Output saturation voltage | ≤2V |
| Response time | 33μs |
| Switching frequency | 15KHz |
| Analog output signal | 0~5V (3V±10% at 90% whiteness) |
| Simulates output impedance | 2.2KΩ (with short-circuit protection) |
| Time delay | 0~20ms can be selected via the delay selection line |
| Choose between dark and bright communication | Automatic |
| Indicator light displays | Output LED (yellow) / Prepare LED (green) |
| Operating temperature | -10~55℃ |
| Storage temperature | -20~70℃ |
| Electromagnetic protection | Double-layer insulation |
| Detection distance | 9±3mm |
| Minimum spot size | 1.5x5mm |
| Light source type | Automatic selection of blue (465nm) / green (520nm) and red (630mm). |
| Connection method | M12-5 pin connector |
| Protection level | IP67 |
| Weight | 170g |
