Product details
The ultrasonic electromagnetic emitter oscillates at an ultrasonic frequency of 220KHz, with an output up to 1KHz. Between the ultrasonic emitter and receiver, the receiver receives the ultrasonic portion that is not blocked by the material. Airflow and temperature changes can be compensated, resulting in an accuracy of up to 0.01mm, capable of testing the edges of acoustic materials without being affected by paper ash contamination.

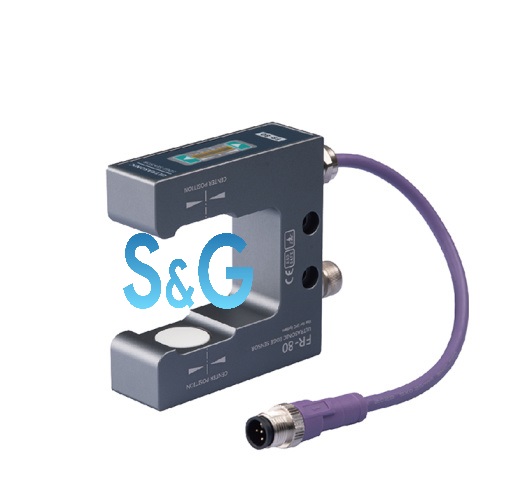

Ultrasonic sensor
+ analog ultrasonic sensor
+ viewing range ±3.5mm
+ insensitive to dirt caused by dust
+ sensing materials that cannot pass through ultrasound, such as paper, plastic, and metal films, regardless of material transparency
Technical specifications
| Working methods | Ultrasonic modulation transmits and receives transmissive detection, analog output |
| Operating voltage | 12~24VDC |
| Current consumption | 80mADC |
| Ambient temperature | 0-60℃ |
| Measurement range | ±3.5mm |
| Measurement accuracy | ±0.01mm |
| Ultrasonic frequency | ~220KHz |
| Output method | Analog capacity 0~5V |
| Cable length | The longest is 10 meters |
| Protection rating | IP54 |
| Weight | 0.3kg |
| Stride | 50mm |
| Dimensions (Length x Width x Height) | Length 77mm x Width 25mm x Height 81mm |
