Modular Slot MOVIE
MODEL[CV]

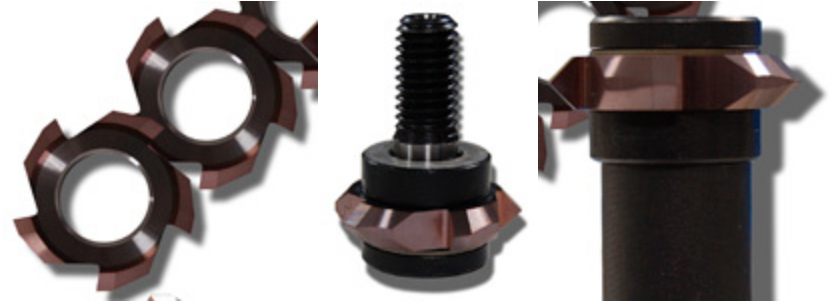

■ Can be attached and replaced on modular system arbors, reducing operating costs.
■ Five blades enable high feed.
■ Sharp edges prevent shaking and minimize burrs.
■ High hardness and high heat resistance coding for long lifespan.
■ Re-polishing with solid head is also possible. Eco-friendly and economical.
Solid Head Part Number
| CODE | Outer diameter ΦD ±0.1 | Thick blade T | Inner diameter Φd H6 | Number of Blades Z | Angle θ±10′ | Maximum C Width |
|---|---|---|---|---|---|---|
| MSCV-25 | 25 | 5.0 | 12 | 5 | 90° | 2.3C |
| MSCV-32 | 32 | 8.0 | 12 | 5 | 90° | 3.8C |
* Because the V-tip is treated with anti-chipping honing, a flat surface of ~0.1 remains intact.
(We can also manufacture specifications without honing.) )
*Repolishing is possible at our company.
*Can also be used with arbors for other companies’ modular systems. (The following dedicated clamp bolts are required.) )
*Special sizes such as 120° types can also be manufactured.
Dedicated Clamp Bolt Part Number
| CODE | Compatible Arbor | Screw section M | Inlet diameter ΦD1 | Compatible Head |
|---|---|---|---|---|
| MSCVB-25 | MS-ST16-150 | M8 | Φ8.5 | MSCV-25 |
| MSCVB-32 | MSCV-32 |
*It can also be used with arbors for other companies’ modular systems.
| Compatible Manufacturers | |
|---|---|
| Mitsubishi Materials | Screw-in tool |
| Hitachi Tools | Modular mill |
| Daijet | Modular Head |
| SANDVIK | Modular Colomill |
| SECO | Combi Master Head |

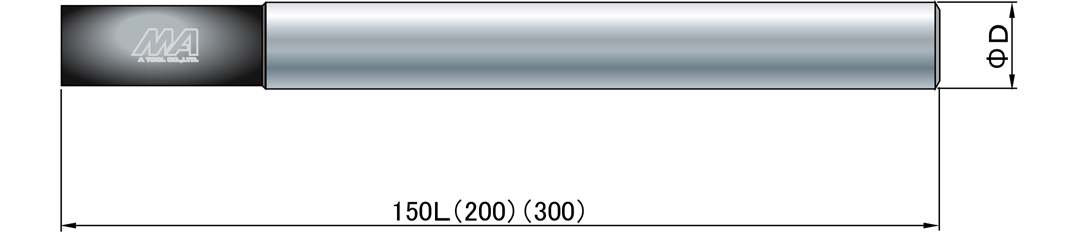

Modular Arba Part Number
| CODE | Overall length: L | Shank diameter ΦD | Head Used | clamp bolt |
|---|---|---|---|---|
| MS-ST16-150 | 150 | 16.0 | MSCV-25 | MSCVB-25 |
| MSCV-32 | MSCVB-32 |
