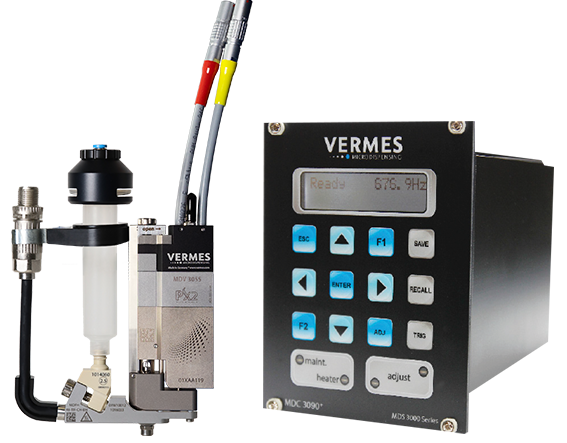

he MDS 3055 Microdispensing System with Top Adjust enables compact stacking for parallel processes. Powered by VERMES PX2 Technology, it ensures consistent dispensing of low to medium viscosity media. Featuring a tappet position sensor and modular design, it offers unmatched flexibility and compatibility.
| Dispensing quantity | 3 nL to serveral mL (depending on media) |
| Dispensing viscosity | Up to 8,000 mPas |
| Supply pressure | 1 – 8 bar (rel.), max. 100 bar (only when pressure tank is used) |
| Frequency | Up to 2,000 Hz (depending on media) |
| Technology | Powered by Piezo Xtreme 2 Technology |
| Ambient temperature | 10 °C – 50 °C |
| Heating system | Internal heater 48 V Fluid box with integrated heater |
| Standard interface | PLC 24 V, RS 232 |
| Valve type | Top Adjust, Normally closed |
| Dimensions | Valve MDV 3055: 103 mm H x 39.5 mm W x 15 mm D Control unit MDC 3090+: 128 mm H x 102 mm W x 173 mm D (without cables), for installation in 19″ racks |
| Weight | Valve: 250 g, Controller: 1500 g |
| Power connection | Power Adapter: 110/230 V AC, 50/60 Hz power socket |
