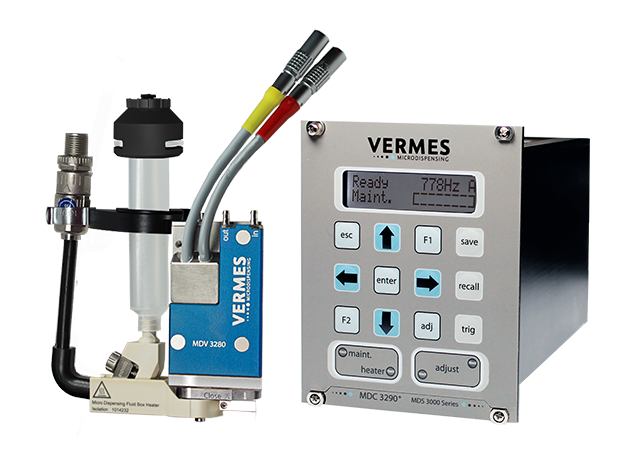

The MDS 3280 sets new standards in microdispensing. Featuring a unique Bayonet Fluid Box Body with integrated heating, top adjust for quick setup, and high-speed piezo technology, it adapts perfectly to various media. Compact design ensures seamless integration, easy cleaning, and maximum application flexibility.
| Dispensing quantity | Min. 0.5 nL per pulse (depending on media) |
| Minimum droplet diameter | 150 µm |
| Supply pressure | 1 – 8 bar (rel.), max. 100 bar (only when pressure tank is used) |
| Frequency | Up to 2,000 Hz (depending on media) |
| Dispensing viscosity | Up to 2,000,000 mPas |
| Optional heating system | Regulated nozzle heating up to 180 °C (higher temperature upon request) |
| Standard interface | RS 232 C; PLC 24 V /5 V, AUX |
| Valve type | Top Adjust, Normally open |
| Dimensions | Valve MDV 3280: 92.1 mm H x 41.5 mm W x 36.5 mm D (including air cooling) Control unit MDC 3290+: 128 mm H x 102 mm W x 173 mm D (without cables), for installation in 19″ racks |
| Weight | Valve: 250 g, Controller: 1350 g |
| Power connection | 110/230 V AC, 50/60 Hz power socket (on the back side) |
