The carbide solid key seed cutter mini slit master comes in two models: [KSAL] for ductile materials such as aluminum and resin, and [KSHD] for difficult-to-machine materials like stainless steel and titanium alloys.
This carbide keyseed cutter features a newly developed blade shape that suppresses vibration during cutting and offers extremely high chip discharge performance, along with a coating specific to each model, enabling high-precision and efficient groove machining of all metal and resin materials.
KSHD＆KSAL MOVIE
MODEL[KSHD]
Differences in cutting edge wear after continuous cutting of SUS 304 under the same conditions
■ Achieves long lifespan with a high-strength dedicated coating.
■ Unique blade shape ensures smooth cutting without any jolting.
■ Cutting edge finish accuracy a level above chipping prevention.
■ Usable at three times the rotational speed compared to standard products.
MODEL[KSAL]
Differences in burr generation after machining AL 6061-T6
■ Thanks to the dedicated coating, welding is minimized and life is long.
■ Sharp, unique blade shape reduces vibration and provides a smooth cutting surface.
■ The synergistic effect of dedicated coating and blade shape significantly reduces burr generation.
■ Enables dramatically faster processing than conventional products.

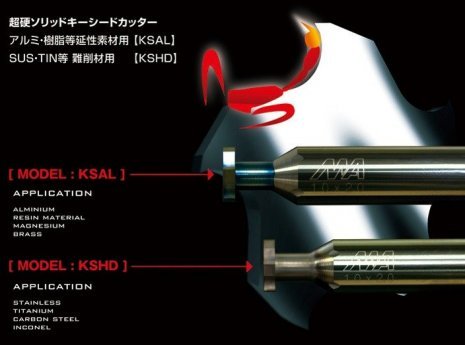

MODEL[KSAL] MODEL[KSHD]

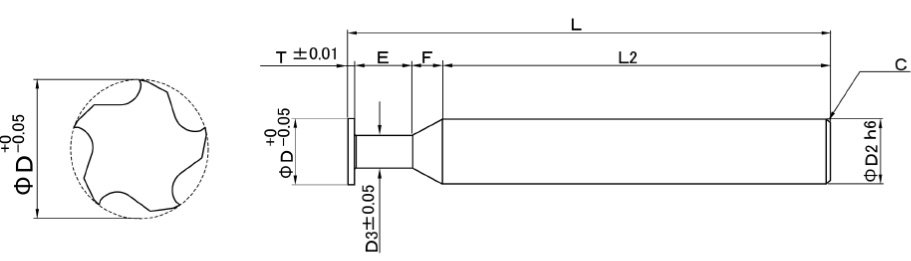

SIZE
| D1: Blade diameter +0
-0.05
|
T: Blade thickness (in 0.1mm increments) + 0
-0.02
|
N: Head diameter | E: Chief | L: Overall length | D2: Shank diameter |
|---|---|---|---|---|---|
| Φ4.0 | 0.3t～2.0t | 2 | 3.5 | 50 | 4.0 |
| Φ6.0 | 0.3t～2.0t | 3 | 4 | 50 | 6.0 |
| Φ8.0 | 0.3t～2.0t | 4 | 5 | 60 | 8.0 |
| Φ10.0 | 0.3t～2.5t | 5 | 6 | 70 | 10.0 |
| Φ12.0 | 0.3t～3.0t | 6 | 8 | 70 | 12.0 |
* Blade thickness, outer diameter size, etc., not listed above, can also be made to order.
*We also manufacture long and full-length long types to order.
Effective Machining Depth
| Blade diameter +0 -0.05 |
Effective machining depth F (mm) |
|---|---|
| Φ4.0 | 0.80 |
| Φ6.0 | 1.30 |
| Φ8.0 | 1.80 |
| Φ10.0 | 2.30 |
| Φ12.0 | 2.80 |
