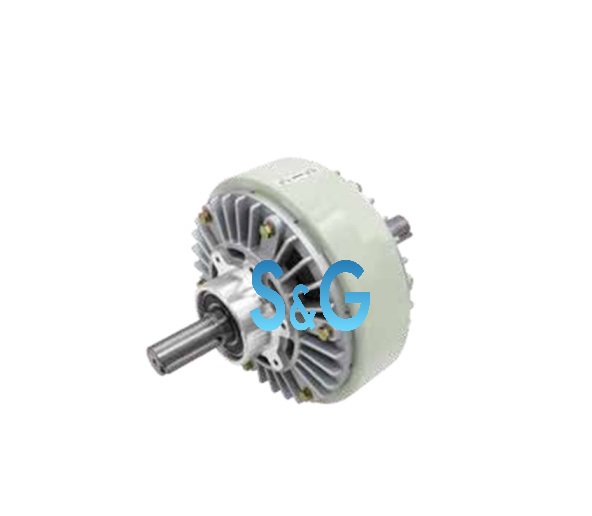

Product details
| Model | PC-0.6 | PC-1.2 | PC-2.5 | PC-5 | PC-10 | PC-20 | PC-40 | |
| Rated torque kg#m (N-m) | 0.6(6) | 1.2(12) | 2.5(25) | 5(50) | 10(100) | 20(200) | 40(400) | |
| Capacity: DC24 (75°C) | Current (A) | 0.81 | 0.94 | 1.24 | 2.15 | 2.4 | 2.7 | 3.5 |
| Power (W) | 19.4 | 22.5 | 30 | 51.5 | 57.6 | 64.8 | 84 | |
| Time constant (S) | 0.08 | 0.1 | 0.12 | 0.13 | 0.25 | 0.37 | 0.4 | |
| moment of inertia | 6×10-4 | 1.34×10-3 | 3.8×10-3 | 9.5×10-3 | 3.5×10-2 | 9.15×10-2 | 2.4×10-1 | |
| Forced air cooling allows for sliding power | Wind pressure (Pa) | 3×104 | 5×104 | 1×10⁵ | 6×104 | 5×104 | 2×10⁵ | |
| Airflow (Pa) | 0.2 | 0.4 | 0.6 | 1.1 | 1.6 | 2.0 | ||
| Power (W) | 250 | 380 | 700 | 1100 | 1900 | 2800 | ||
| Weight (kg) | 4 | 5.2 | 9 | 14.5 | 34 | 53 | 100 | |
| Maximum Speed (r/min) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | |
| Magnetic powder weight (g) | 10 | 20 | 33 | 60 | 140 | 225 | 370 | |
| External dimensions: Dimensions | D1 | 134 | 152 | 182 | 219 | 290 | 325 | 395 |
| D2 | 116 | 126 | 160 | 198 | 256 | 295 | 365 | |
| D3(g7) | 42 | 42 | 55 | 74 | 100 | 110 | 130 | |
| D4 | 64 | 64 | 78 | 100 | 140 | 150 | 200 | |
| L | 164 | 192 | 232 | 294 | 360 | 408 | 500 | |
| L1 | 26 | 29 | 43 | 55 | 65 | 69 | 92 | |
| L2 | 100 | 124 | 136 | 172 | 216 | 250 | 291 | |
| L3 | 14 | 15 | 17 | 30 | 28 | 30 | 35 | |
| L4 | 18 | 25.5 | 26 | 28 | 45.5 | 55 | 66.5 | |
| d(h7) | 12 | 15 | 20 | 25 | 30 | 35 | 45 | |
| H | 9.5 | 12.5 | 17.5 | 21 | 26 | 30.5 | 40.5 | |
| W(p7) | 4 | 5 | 5 | 7 | 7 | 10 | 12 | |
| V | M4x0.7Px8L | M4x0.7Px8L | M5x0.7Px10L | M6x1Px12L | M10x1.5Px20L | |||
| R | M5x0.7P | M6x1P | M10x1.5P | |||||
| S | 1/8 | 1/8 | 1/4 | 3/8 | ||||
