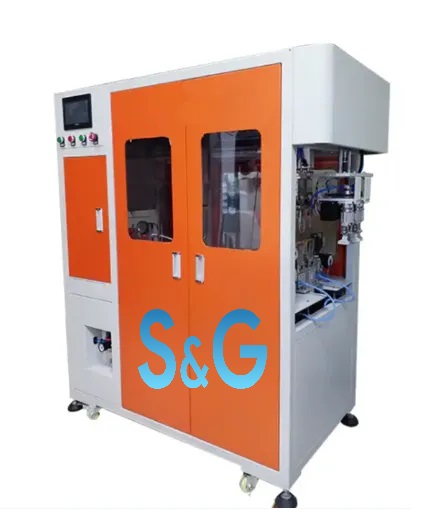

The SA-CR0 is a premier, fully autonomous solution designed to eliminate the labor-intensive bottlenecks of cable and tube packaging. This high-speed workstation integrates four critical processes into a single seamless cycle: Precision Length Measuring, Clean Cutting, O-Shape Coiling, and Secure Tying.
Engineered for 24/7 “operator-free” production, the SA-CR0 allows manufacturers to feed raw material in and collect finished, retail-ready coils at the end. With adjustable inner diameters and digital length settings, it is the most versatile choice for power cords, USB cables, and industrial tubing.
Core Product Advantages
-
Full-Cycle “Operator-Free” Automation: Once the parameters are set, the machine operates independently, drastically reducing labor costs and human error.
-
Precision Length Control: Features an integrated digital measuring system that ensures every cut meets your exact specifications with minimal material waste.
-
Flexible “O-Shape” Coiling: Specifically designed for the popular O-shape circular coil, providing a professional and uniform appearance for consumer or industrial packaging.
-
Adjustable Coil Parameters: The inner diameter of the coil and the tightness of the tie can be easily adjusted via the touch-screen interface to suit different product types.
-
High-Speed Throughput: Significantly outperforms manual coiling and tying, delivering a consistent finish that is impossible to replicate by hand.
-
Industrial Durability: Built with high-quality components and a robust frame to withstand the demands of high-volume manufacturing environments.
Technical Specifications
| Specification | Details |
| Model | SA-CR0 (Full-Auto Series) |
| Process Sequence | Measure -> Cut -> Coil -> Tie |
| Coiling Shape | O-Shape (Circular) |
| Applicable Cable OD | 3 mm – 8 mm (Standard) |
| Winding Speed | 1 – 10 Coils / Minute (Depending on length) |
| Coil Inner Diameter | 120 mm – 200 mm (Adjustable) |
| Length Accuracy | +/- 0.5% (Depending on cable type) |
| Tying Material | Plastic-Coated Iron Core Wire / PE Tie |
Operating Parameters
| Parameter | Performance Standard |
| Power Supply | AC 220V (50-60Hz) |
| Air Pressure | 0.5 – 0.7 MPa (Clean, dry air) |
| Interface | PLC Touch Screen (English / Chinese) |
| Machine Weight | Approx. 250 KG |
| Mounting | Floor-Standing with Heavy-Duty Casters |
