ur proprietary grinding technology has achieved ultra-thin blade thickness, a feature that had not yet been practically applied in cemented solid metal saws.
Minimum blade thickness can be manufactured up to 0.02mm for φ45, 0.04mm for φ60, and 0.10mm for φ100. It enables fine cutting and fine groove cutting in areas previously considered impossible.
Product Features
-
It is finished to a “mirror” finish using our unique grinding technology.
-
Only our company has a back taper (medium to low gradient) at this thickness.
- Comparison between hair and blade tips
- Measurement with a micrometer

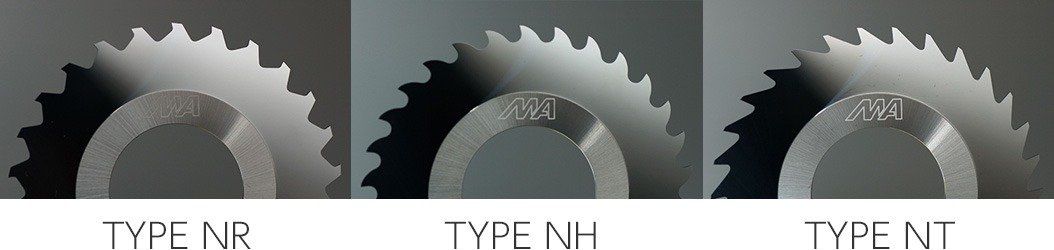

Types of Blade Shapes
Processing Targets
| ■ Processing Target: Workpiece Material |
|---|
| Metals such as aluminum, copper, pure iron, SUS, etc.
Glass fiber-mixed resins, FRP substrate materials, acrylic, nylon-based resins, and other engineering plastics, as well as laminates of metal and engineering plastic.
|
Scope of Production
| ■ Production Range (unit: mm) | |||
|---|---|---|---|
| outer diameter | Thickness (Standard thickness tolerance ±0.002) | inner diameter | |
| φ25 | 0.02～ | Boss back taper (BB) specification ranges from 0.05~ | φ6.0/φ9.525 |
| φ45 | 0.02～ | Boss back taper (BB) specification ranges from 0.05~ | φ12.7/φ15.875 |
| φ50 | 0.04～ | Boss back taper (BB) specification ranges from 0.05~ | φ12.7/φ15.875 |
| φ60 | 0.05～ | Boss back taper (BB) specification ranges from 0.07~ | φ25.4/φ40.0 |
| φ70 | 0.05～ | Boss back taper (BB) specification ranges from 0.07~ | φ25.4/φ40.0 |
| φ85 | 0.08～ | Boss back taper (BB) specification ranges from 0.10~ | φ40.0 |
| φ100 | 0.10～ | Boss back taper (BB) specification ranges from 0.12~ | φ40.0 |
| φ120 | 0.12～ | Boss back taper (BB) specification ranges from 0.15~ | φ90.0 |
High-Speed Microfabrication Case Studies at SHARP SAW-S LG
■ Processing Example 1
Processing material: FRP substrate, + copper foil
Metal saw size: Outer diameter Ф70
Blade thickness 0.10t
Number of teeth: 100N
Metal saw rotation: 3,000rpm
Feed speed: 12,000mm/
min (200mm/s)
■ Processing Example 2
Metal saw size: Outer diameter 70 / Thickness 0.10 / Inner diameter 25.4 / Number of teeth 100
Workpiece material: AL 6063-T6 Machine
used: Matsuura Machinery Works V.PLUS-550
Cutting length (workpiece width): 50mm
Number of grooves processed: 10
Groove width: 0.10 mm Groove depth: 0.5 mm Rib width: 0.15mm
Metal saw rotation speed: 6000rpm
Feed speed: 8000mm/min
Machining time: 30 seconds
