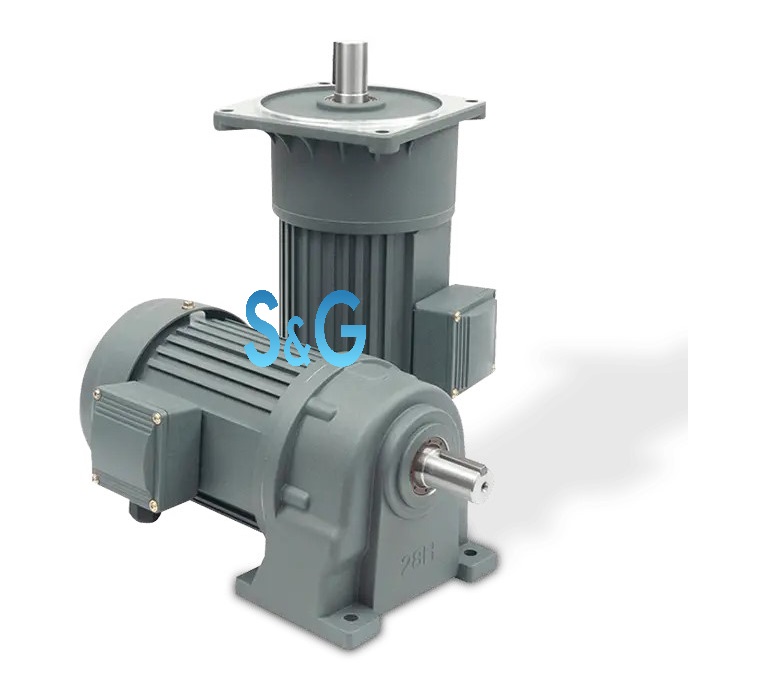

Motor power: 100W(1/8HP) Horizontal or Vertical install
Phase: Single Phase / Three Phase
Gear Ratio: 3-1800K
Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ
Output shaft diameter: φ18 φ22mm φ28mm
H18/CV18-100W-(Standard box 1:3~50 ratio) (Reduced box 1:60~200 ratio) Size diagram
CH22/CV22-100W-Dimensional drawing with a ratio of 1:210 or higher
CH22/CV22-100W-(Standard box 1: 60-200 ratio) Size diagram
CH28/CV28-100W-Dimensional drawing with a ratio of 1:210 or higher
Electrical machinery parameter
| Electrical machinery parameter | ||||||||
| Power (kW) | Type | Voltage(v) | Frequency(Hz) | Rated Current(A) | Rated Rotation speed(rmp) | Capacitors(μF) | Insulation classification | Protective System |
| 0.1 kW
1/8HP |
Single-phase | 220V | 50Hz | 0.35A | 1420rmp | 8μF | F | IP54 |
| Three-phase | 220V/380V | 50Hz | 0.6A/0.4A | 1420rmp | / | |||
100W-(1:3-1800 Digital ratio)Torque table
| Gera Ratio | 3 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 | 300 | 1200 | 1800 | |
| Output R.P.M. | 50Hz | 500 | 300 | 150 | 100 | 75 | 60 | 50 | 37 | 30 | 25 | 21.4 | 18.8 | 16.7 | 15 | 12.5 | 10.7 | 9.4 | 8.4 | 7.5 | 5 | 1.25 | 0.83 |
| 60Hz | 600 | 360 | 180 | 120 | 90 | 72 | 60 | 45 | 36 | 30 | 25.7 | 22.5 | 20 | 18 | 15 | 12.9 | 11.3 | 10 | 9 | 6 | 1.5 | 1 | |
| Output Torque kg/m | 50Hz | 0.19 | 0.31 | 0.62 | 0.91 | 1.2 | 1.4 | 1.8 | 2.2 | 2.8 | 3.4 | 4.3 | 4.8 | 5.2 | 5.8 | 6.9 | 8 | 9.1 | 10.3 | 11.6 | 17.5 | 58.5 | 58.5 |
| 60Hz | 0.16 | 0.26 | 0.52 | 0.76 | 1 | 1.2 | 1.5 | 1.9 | 2.4 | 2.9 | 3.6 | 4.0 | 4.4 | 4.9 | 5.8 | 6.7 | 7.6 | 8.6 | 9.7 | 14.9 | 47.6 | 47.6 | |
The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min
The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
