SPE Series 40 60 80 120 160 Spur Planetary Gearbox|SAIYA

Posted on by admin
29
Th5

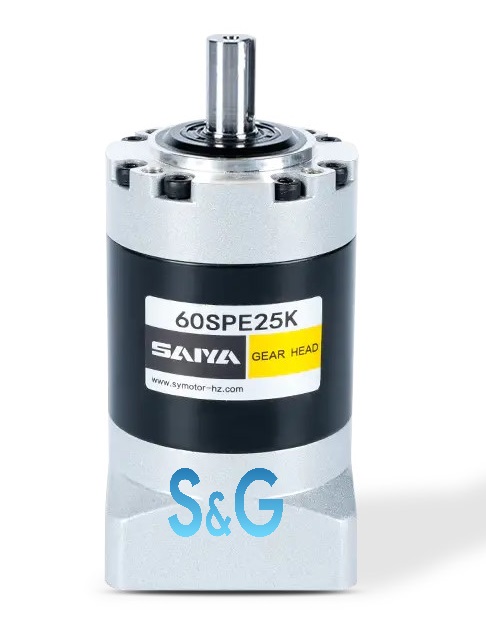

The SPE series gearboxes, flange size range with 40, 60, 80, 120, and 160 models, are designed to provide efficient and robust power transmission solutions. These gearboxes feature a round output flange, making them suitable for various applications requiring precise and reliable torque transfer. The SPE series suit for motor power from 50W to 7500W, ensuring versatility across different industrial needs.

One of the standout features of the SPE series is its extensive reduction ratio range, from 3:1 to 512:1. This flexibility allows for fine-tuning of speed and torque outputs to match specific operational requirements. The robust construction ensures durability and long service life, even in demanding environments.

The round output flange design not only facilitates easy integration into existing systems but also ensures a secure and stable connection. This design is particularly beneficial in applications where alignment and balance are crucial, such as in robotics, automated machinery, and conveyor systems.

SPE series gearboxes offer a wide range of power capacities and reduction ratios, making them highly adaptable for various industrial applications. Their round output flange design enhances integration ease and operational stability, ensuring reliable performance across diverse usage scenarios.

TECHNICAL INFORMATION

Model Unit SP40 SP60 SP80 SP120 SP160 Gear ratio Stage
Rated Output Torque N.m 4.5 12 40 80 400 3 1
6 16 50 100 450 4
6 16 50 110 450 5
5 15 45 120 450 8
5 15 45 120 305 10
16.5 44 110 210 400 9 2
18 44 120 260 800 12
18 40 110 230 700 15
20 44 120 260 800 16
20 44 120 260 800 20
18 40 110 230 700 25
20 44 120 260 800 32
18 40 110 230 700 40
7.5 18 50 120 450 64
20 44 120 260 800 60 3
20 44 120 260 800 80
20 44 120 260 800 100
18 40 110 230 700 120
20 44 120 260 800 160
18 40 110 230 700 200
20 44 120 260 800 256
18 40 110 230 700 320
7.5 18 50 120 450 512



Model Number SP40 SP60 SP80 SP120 SP160
Torsional stiffness 0.7 1.8 4.5 12 38
Noise Level 55 58 60 65 70
Max Input speed(rpm) 10000 8000 6000 6000 6000
Recommend Input speed(rpm) 4500 4000 4000 4000 3000
Max ratial torque(N) 160 340 650 1500 4200
Max axial torque(N) 160 450 900 2100 6000
Operating temperature -25℃~90℃
IP P54
Lubrication Life time lubrication
Mount type Any direction

TECHNICAL INFORMATION

Model Unit SP40 SP60 SP80 SP120 SP160 Gear ratio Stage
Moment of Intertia Kgcm² 0.031 0.135 0.77 2.63 12.14 3 1
0.022 0.093 0.52 1.79 7.78 4
0.019 0.078 0.45 1.53 6.07 5
0.017 0.065 0.39 1.32 4.63 8
0.015 0.054 0.34 1.14 3.52 10
0.03 0.131 0.74 2.62 12.1 9 2
0.029 0.127 0.72 2.56 12.37 12
0.023 0.077 0.71 2.53 12.35 15
0.022 0.088 0.5 1.75 7.47 16
0.019 0.075 0.44 1.5 6.65 20
0.019 0.075 0.44 1.49 5.81 25
0.017 0.064 0.39 1.3 4.5 32
0.016 0.064 0.39 1.3 4.5 40
0.016 0.064 0.39 1.3 4.5 64
0.029 0.13 0.7 2.57 12.1 60 3
0.019 0.075 0.5 1.5 5.81 80
0.019 0.075 0.44 1.49 5.8 100
0.029 0.13 0.7 2.5 12.1 120
0.016 0.064 0.39 1.3 4.5 160
0.016 0.064 0.39 1.3 4.5 200
0.016 0.064 0.39 1.3 4.5 256
0.016 0.064 0.39 1.3 4.5 320
0.016 0.064 0.39 1.3 4.5 512



Model  Number SP40 SP60 SP80 SP120 SP160 Stage
Backlash Arcmin Precision ≤5 ≤3 ≤3 ≤3 ≤3 1
Standard ≤10 ≤8 ≤8 ≤8 ≤8
Precision ≤8 ≤5 ≤5 ≤5 ≤5 2
Standard ≤12 ≤10 ≤10 ≤10 ≤10
Precision ≤10 ≤8 ≤8 ≤8 ≤8 3
Standard ≤15 ≤12 ≤12 ≤12 ≤12



Model Number SP40 SP60 SP80 SP120 SP160 Stage
Full load efficiency(%) 96 1
94 2
90 3
Net weight(Kg) 0.4 0.9 2.1 6 18 1
0.5 1.1 2.6 8 22 2
0.6 1.3 3.1 9.5 29 3



Working Life 20,000 hours
Instant stop torque 2×Rated torque

60SPE Series Dimensions

200W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 117.1 135.1 138.5

400W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 117.1 135.1 138.5

750W dimensions(second choice)

Total length 1-Stage 2-Stage
L 123.5 136.5

80SPE Series Dimensions

400W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 136.5 154.5 172

750W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 145 166.5 179

1000W dimensions (second choice)

Total length 1-Stage 2-Stage
L 163.5 181.5

120SPE Series Dimensions

1000W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 191.7 223.7 243

2000W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 194.7 227.7 247

3000W dimensions(second choice)

Total length 1-Stage 2-Stage
L 201.7 235.2

160SPE Series Dimensions

3000W dimensions

Total length 1-Stage 2-Stage 3-Stage
L 280.5 321.5 363

4000W dimensions

Total length 1-Stage 2-Stage 2-Stage
L 280.5 321.5 363

5000W dimensions(second choice)

Total length 1-Stage 2-Stage
L 293.5 334.5
